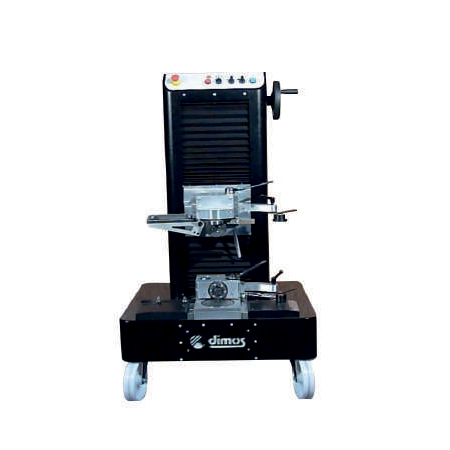

Dimos Panel Curving Machine Dipro C6400

Dimos panel curving machine Dipro C6400 for 25mm standing seams. The Dipro C6400 is the only panel curving machine on the market which can simultaneously form the 5 surfaces which make up the standing seam. This results in a regular and unrivalled quality of the finished panel.

Benefits:

• With double speed variators
• Improved machine ergonomics (easy to adjust settings)
• Engineered to ensure repeatability of the process

Features:

• Length: 0.7m
• Width: 0.9m
• Height: 1.6m
• Weight: 300Kg
• Motor power (arch bending): 2×0.37kw
• Power supply: 110V, 220V
• Curving speed: 8 – 15ml/mm
• Maximum noise emissions: 70dB
