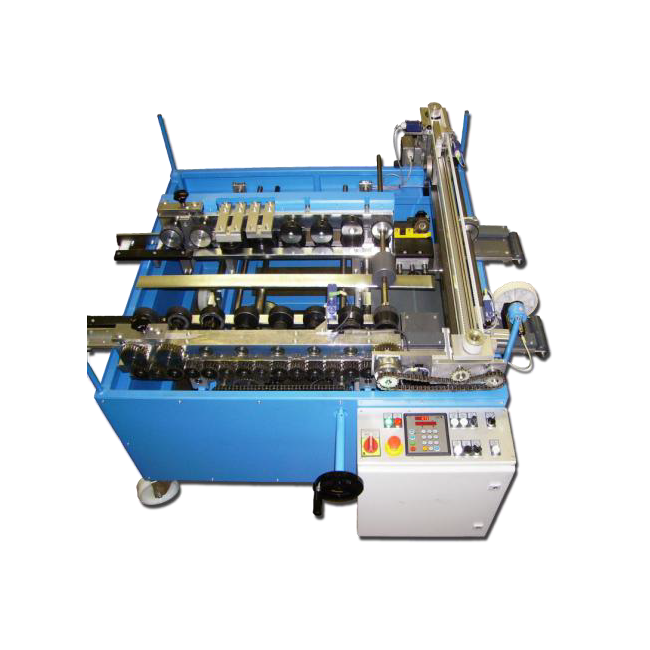

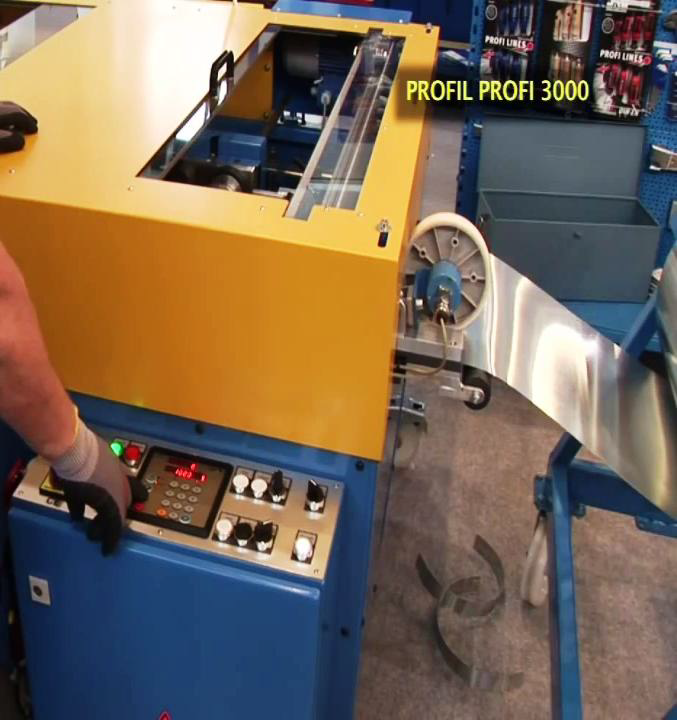

Herburger Profiling Machine – Profil Profi PP3000

Herburger profiling machine “Profil Profi PP3000” is the industrial model for series production, fully automatic machine and profiling system for profile manufacturers/profilers.

Now exclusively available with stainless steel rolls

The fully automatic machine for industrial production:

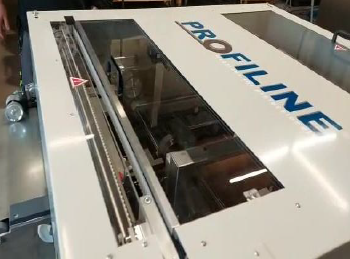

• Sliding window cover (with safety switch)
• Electric roller shears for cross-cutting before profiling
• Speed regulation via potentiometer from 0-15 m/min
• Adjustable slitting knife for adapting coulters – simple operation

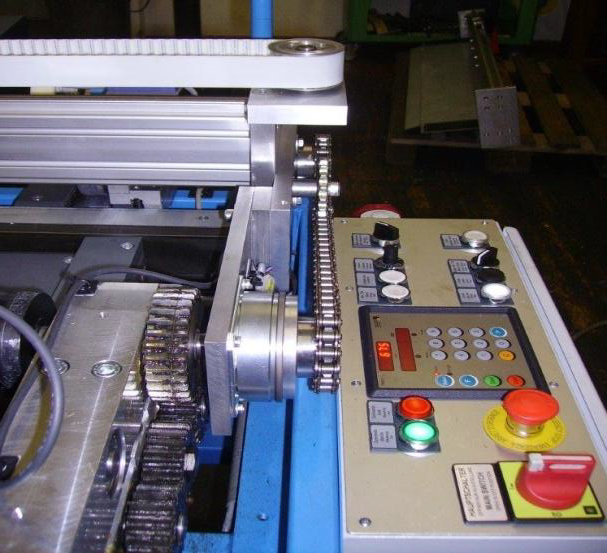

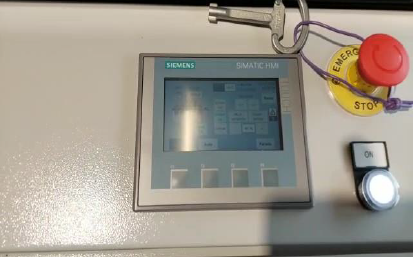

• Siemens control for number of pieces and length preselection

For all commercially available roofing qualities:

• Galvanized / galvanized coated: up to 0.7mm
• Aluminium, copper, zinc: up to 0.8mm
• Stainless steel ROOF-INOX / Uginox: up to 0.6mm

Specs:

• Dimensions in mm: L 1500 / W 1400 / H 1100
• Weight: approx. 520kg

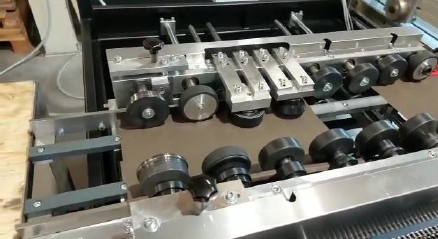

• Profile sizes: 25mm or 32mm (clip relief) for single and double rebate
• Sheet width: Infinitely variable adjustment via trapezoidal threaded spindle for a sheet width of 280-820mm
• Sheet thickness: up to max. 0.8mm

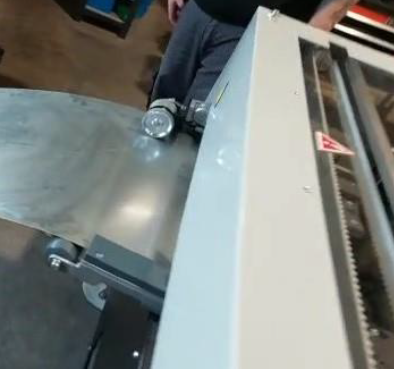

• Sheet feed: Semi-automatic (via switchable clutch)

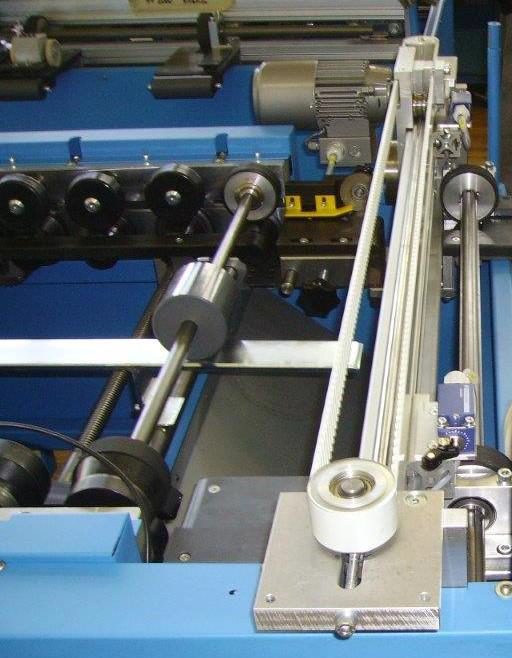

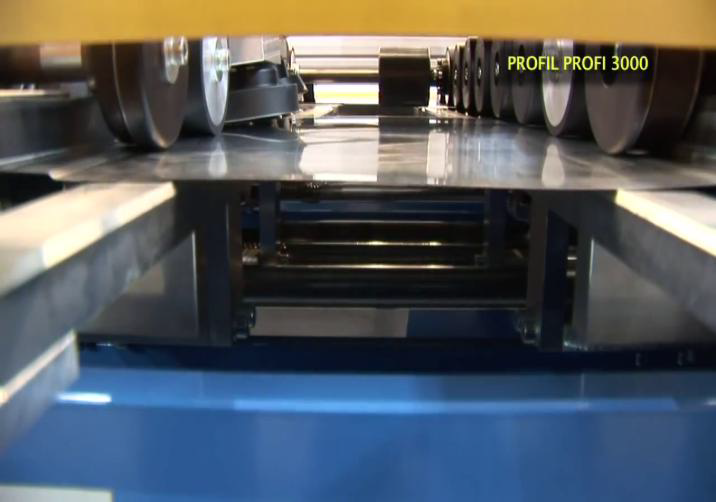

• Roller set: Latest technology, hardened and with drive elements in the rollers (rubber inserts)

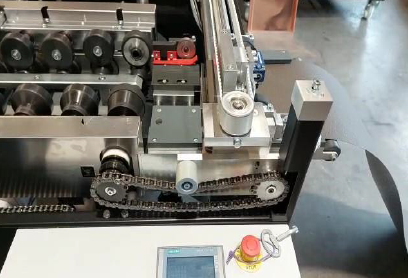

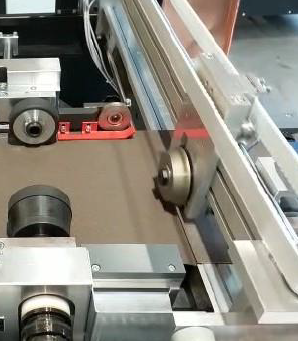

• Cutting device: Fully automatic cross-cutting via guide carriage & manual adjustable longitudinal cutting device with residual material ramp
• Sheet metal drive: Fully automatic
• Colour: RAL9005 deep black and RAL7035 light grey
• Connection: 1.5 KW/220V/16A

Accessories (optional):

• Speed regulation via potentiometer from 0-15 m/min
• Bead roller set for stiffening beads for large widths or thin sheets
• Conversion kit for 1mm thick sheet metal
• Stainless steel castor set
