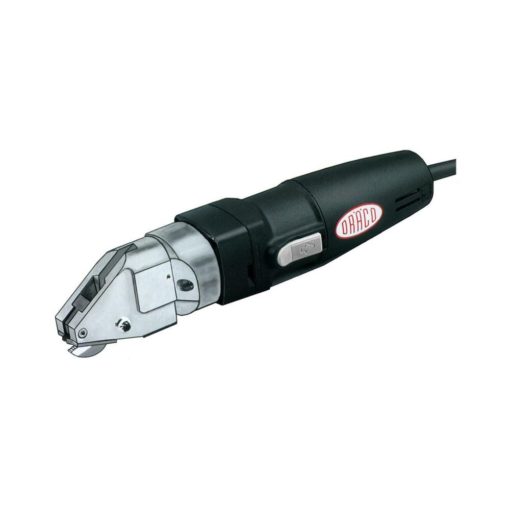

Draco Profile Metal Shears 3520

Draco Profile Metal Shears for cutting up to 2.0 mm sheet steel.

These professional-grade electric shears are designed for installation shops, HVAC fabrication, ventilation systems, construction projects, and a wide range of sheet metal applications. Ideal for cutting cable trays, coated cable trays, cable ladders, spiral ducting, mesh, wire products, and U-, C-, and L-profiles up to 2 mm thick, they offer exceptional versatility and efficiency.

Engineered for clean, accurate cutting, the shears produce burr-free edges without distorting formed parts, eliminating the need for additional straightening or edge finishing. The clear view of the cutting line allows precise cuts along marked lines or templates, while single-side trimming and mitre cuts on cable trays can be performed with ease.

Powered by a robust 500-watt motor, the shears deliver cutting speeds of up to 5 m/min, helping increase productivity without sacrificing accuracy. They are also capable of cutting folded cable trays in a single operation and handle stainless steel cable trays up to 1.5 mm (18 gauge) with ease.

Designed with safety and ease of use in mind, the shears can be operated comfortably with one hand and feature a design that minimizes the risk of injury during operation. Low operating noise keeps sound levels below regulatory limits, making them suitable for workshop and jobsite environments.

Built for long service life, the shears require virtually no maintenance. The knives and jaws can be reground, while standardized, interchangeable parts simplify servicing and reduce downtime. An optional serrated knife is also available for cutting coated materials, making these shears a reliable solution for demanding metal fabrication and installation work.

Technical Data:

• Steel; 400 N/mm²: 2.0mm
• Stainless steel; 600 N/mm²: 1.5mm
• Stainless steel; 800 N/mm²: 1.3mm
• Aluminium; 250 N/mm²: 3.0mm
• Tightest radius: 200mm
• Working speed: 5-7 m/min
• Strokes: 2400 min^-1
• Motor capacity: 500 watt
