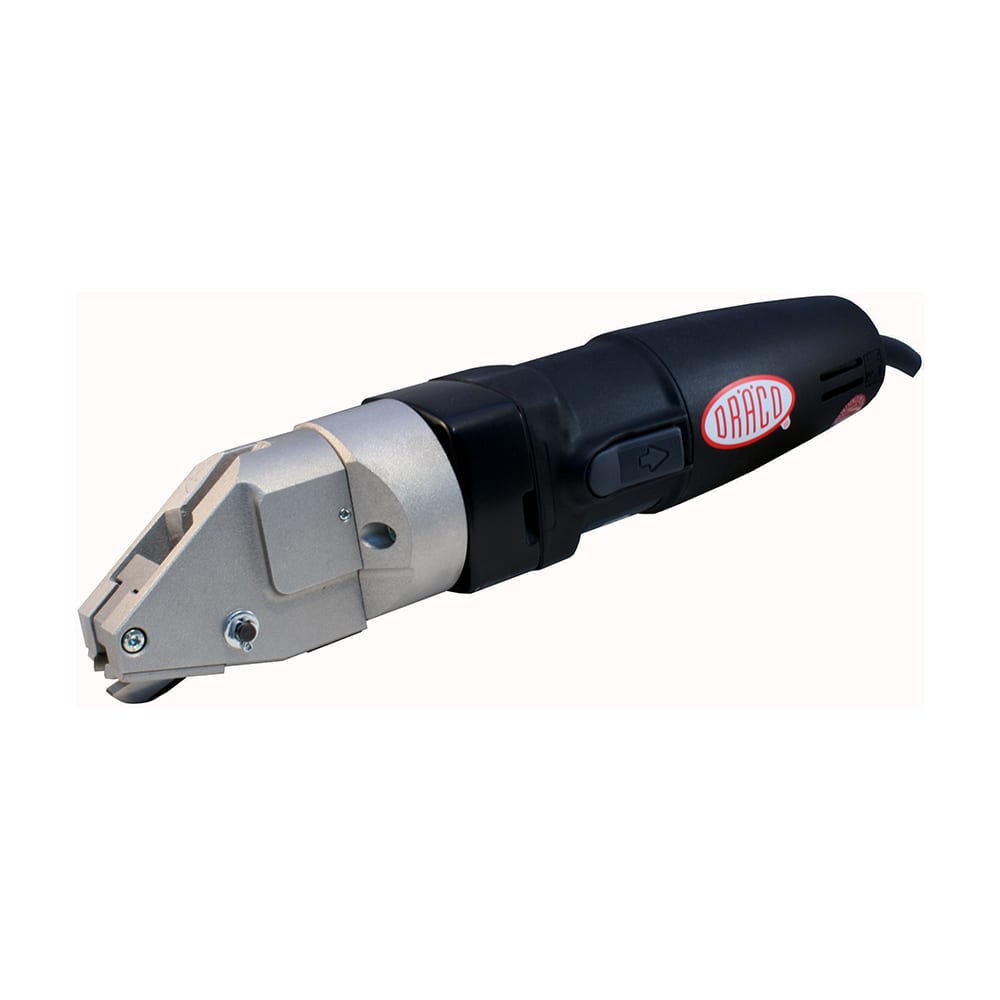

Draco Radius-Seam Metal Shears cuts up to 2.0 mm, or 4×0.75 mm steel.
Cold cutting without flying sparks! Ideal for cutting recesses in spiral ducts and sheets of all kinds. Cuts straight and tight radii in sheets and even over seams.
Ideal for air and climate technology, installation companies, truck workshops, metalworking companies etc.
Round holes in (spiro) tubes,?connections in (spiro) tubes, splitting of(spiro) tubes,?aluminum tear sheet processing.
- Cuts without distortion or straightening of formed parts
- Burr free cutting
- No finishing of the edges is required
- Accurate cutting along a marked line
- Single-side trimming is possible.
- Working speed up to max. 5 m/min.
- Clear view to scribed line or template
- Long life tool
- Easy, one hand, operation
- Simple and safe to use
- Noise under limit regulations
- Insulated and suppressed motor
- Almost no maintenance necessary
- Knife and jaws regrind able
- Parts are standardized and interchangeable
Steel: 400 N/mm², 2.0 mm
Stainless Steel: 600 N/mm², 1.5 mm
Stainless Steel: 800 N/mm², 1.3 mm
Aluminium: 250 N/mm², 3.0 mm
Replacement Knife – 371401
Set of Jaws – BG37222
Knife-Pin Set – BG35055
Metal Support Roller – BG10077
Quick-helix Drill Bit 8-20mm – HW72049
Serrated Knife – 371401Z
Metal Box – 18000
Contact us for more information on replacement parts!
