The Dimos Dipro 3X profiling machine is just as adaptable in the workshop as it is on the job site. Its robust design ensures durability even in outdoor conditions. With its ability to profile quickly and accurately, it delivers professional-quality results every time and across a wide range of metals. This scalable machine offers a multitude of options to meet the diverse needs of both novice and experienced roofers and cladders. Its tool-free operation allows you to use it anywhere, anytime.
Steel: 0.4 to 0.75mm
Aluminum: 0.4 to 0.8mm
Copper: 0.4 to 0.8mm
Zinc: 0.4 to 0.8+mm
Stainless Steel: 0.5mm
Profiling speed: 16m/min
Sheet width in one pass: 235mm to 800mm
Single pass panel width – (mini((M/F)(mm): 157mm
Short panel length: 500mm
Dimensions: 1450x1100x680mm
Total weight: 205kg
Engine voltage: 110 V or 220 V
Drive Power: 1.1 kW
Advantages
- Premium quality rollers: Treated for superior durability and corrosion resistance
- Non-profiling function included on each train
- Profiling maintenance guide for the second pass included on each train
- Integrated bending adjustment device on each train
- Zero desynchronization risk and enhanced safety with a single engine
- Anti-marking central support for tray guidance
- Outdoor condition resistance to ensure longevity
Standing Seam Profile
Ideal for the square plan of standard roofing and cladding applications.
Tray bottom width: 1 pass: from 157 to 722mm
Sheet width: 1 pass: from 235 to 800mm
Tray bottom width: 2 passes: starting from 62mm
Sheet width: 2 passes: Starting from 140mm
Unlimited maximum width with the removal of one of the profiling trains.
Rolled Edge Profile
Ideal for all curved roofs, such as turrets, apses, diamond-shaped four-sided and more roofs
Tray bottom width: 2 passes: from 62 to 677mm
Sheet width: 2 passes: from 140 to 755mm
Unlimited maximum width with the removal of one of the profiling trains.
Female/Female
Ideal for gaps between openings, such as windows, and at the end of roofing and cladding.
Tray bottom width: 2 passes: from 60 to 625mm
Sheet width: 2 passes: from 150 to 715mm
Unlimited maximum width with the removal of one of the profiling trains.
Male/Male
Ideal for starting points at projecting eaves and jambs, for roofing and cladding.
Tray bottom width: 2 passes: from 95 to 660mm
Sheet width: 2 passes: from 165 to 730mm
Unlimited maximum width with the removal of one of the profiling trains.
Female Single Profiling
Ideal for wall terminations in roofing or cladding.
Tray bottom width: 1 pass: from 45 to 710mm
Sheet width: 1 pass: from 90 to 755mm
Unlimited maximum width with the removal of one of the profiling trains.
Male Single Profiling
Ideal for wall starts and transitions in roofing or cladding.
Tray bottom width: 1 pass: from 55 to 710mm
Sheet width: 1 pass: from 90 to 745mm
Unlimited maximum width with the removal of one of the profiling trains.

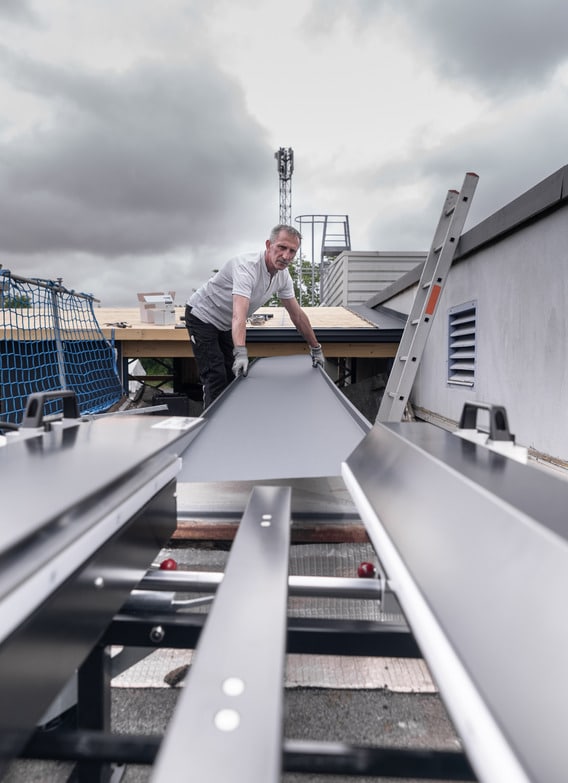

The modular standing seam profiling machine Dipro3x offers unparalleled accessibility. Completely dismantleable in no time, the Dipro3x effortlessly navigates through any terrain, fitting into tight spaces and can be placed directly on rooftops with ease. No obstacle is too daunting – it’s easily transportable through elevators, doorways, and sidewalks. With precision and versatility, the metal profiler Dipro3x transforms every standing seam into a masterpiece.
We manufacture buildings in factories and currently use EPDM membranes. We want to have more durable roofs, and we have considered standing seam roofs. However, we do not have experience in this area. If there are other tools than the following list that we need to create our roofs, you can add them to the quote.
– Dimos Dipro 3X Profiling Machine
