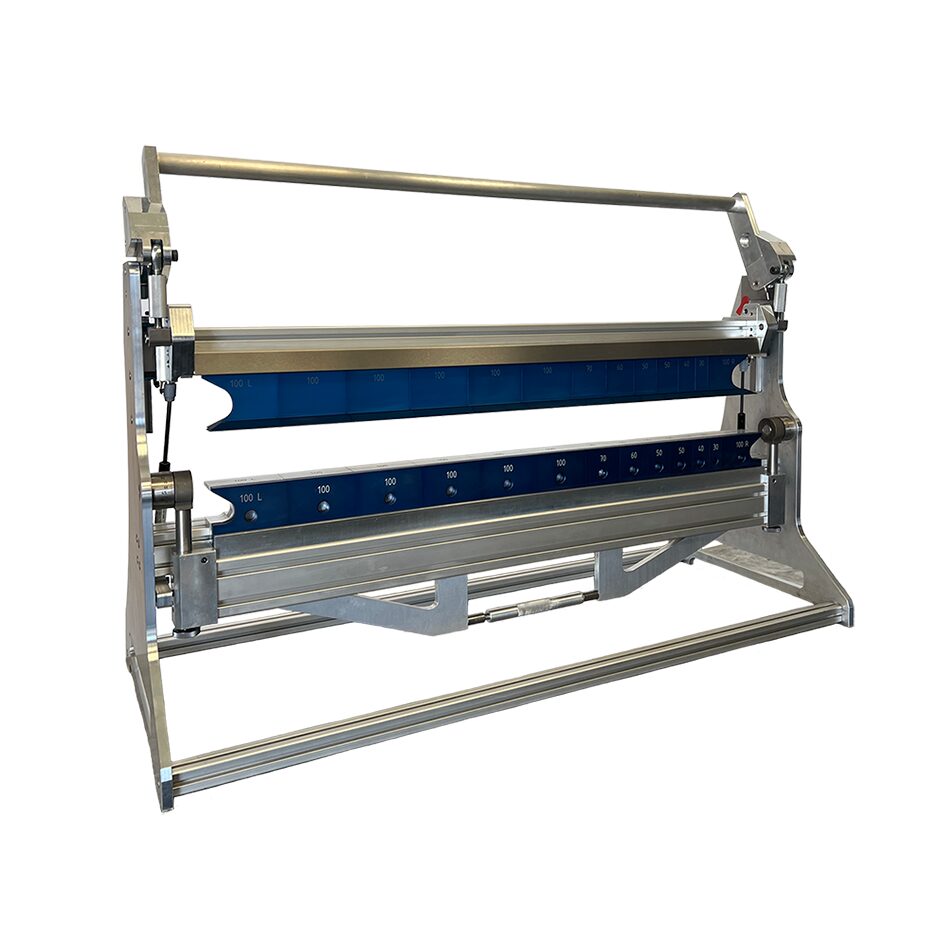

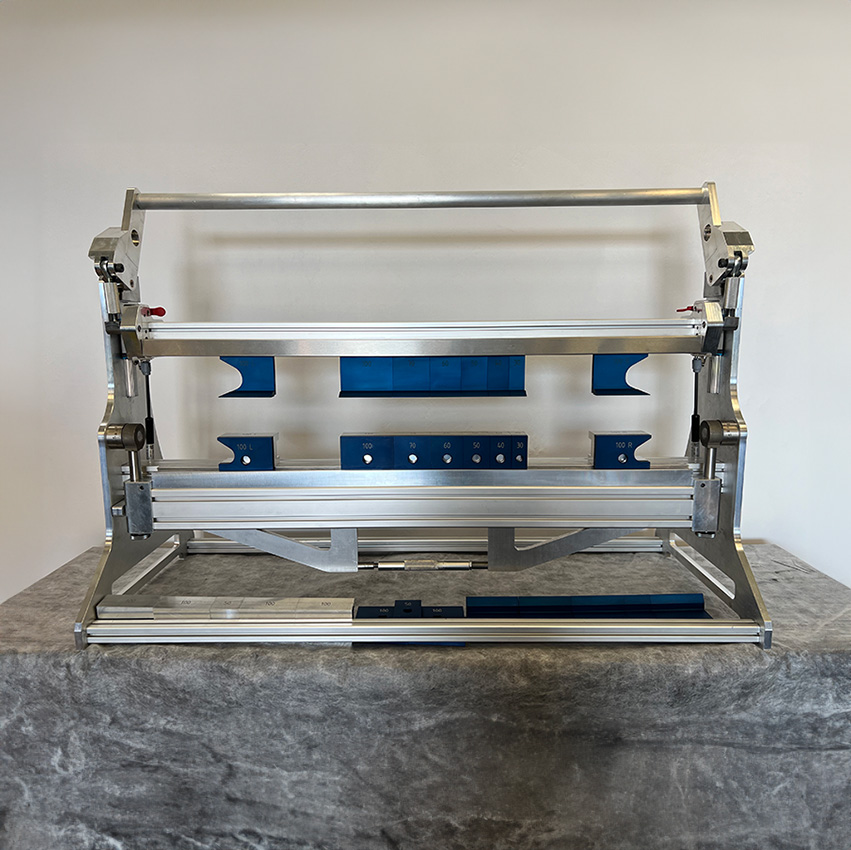

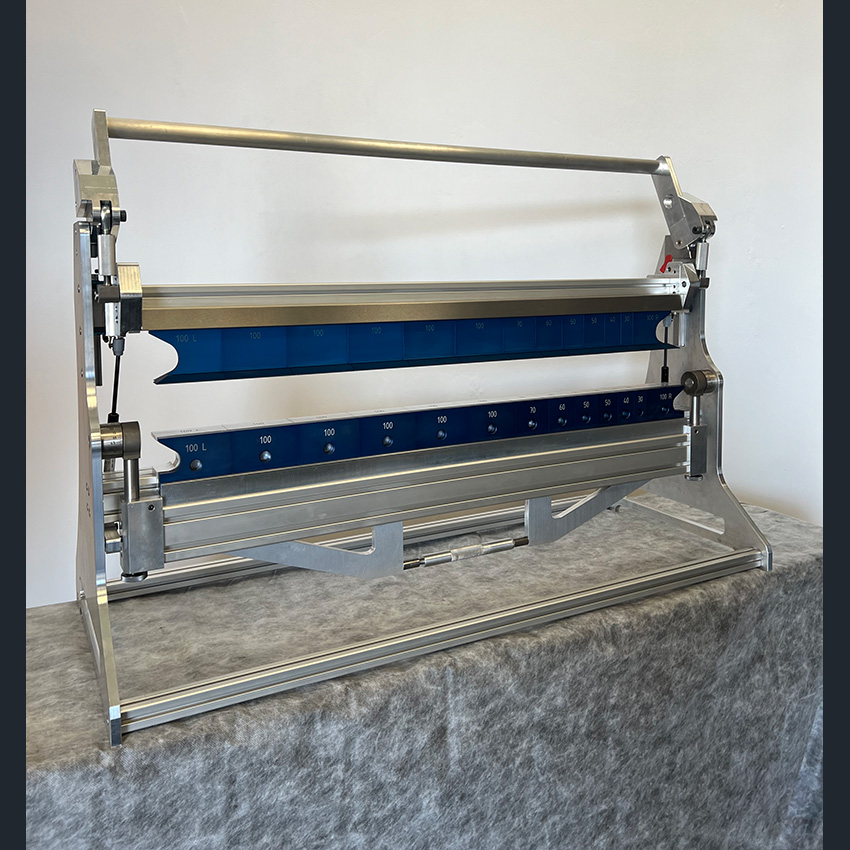

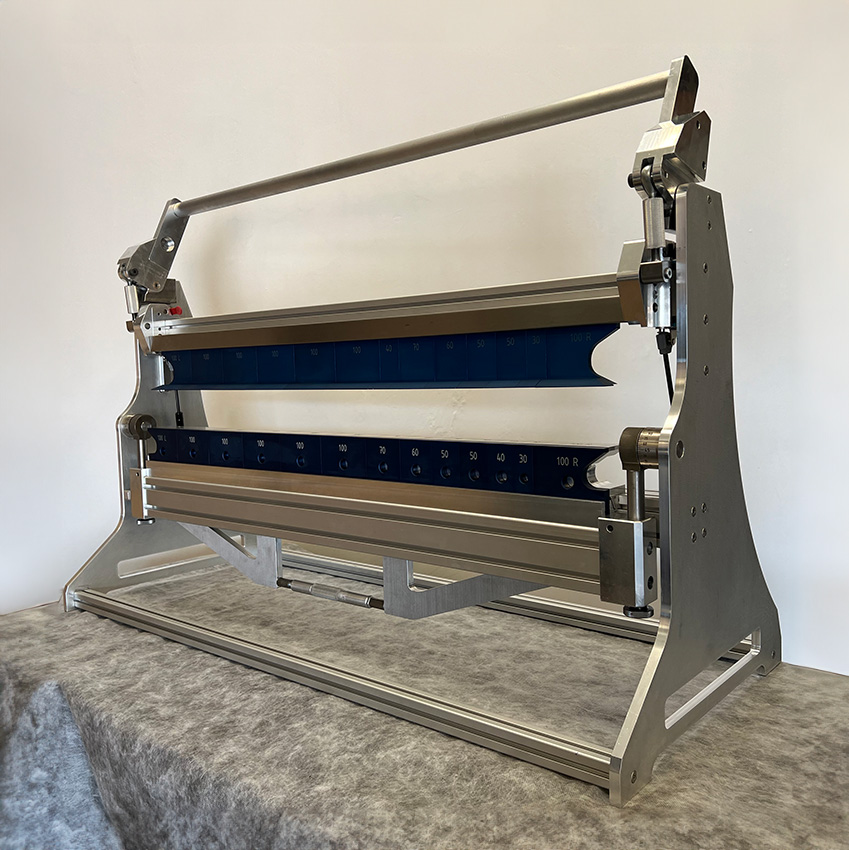

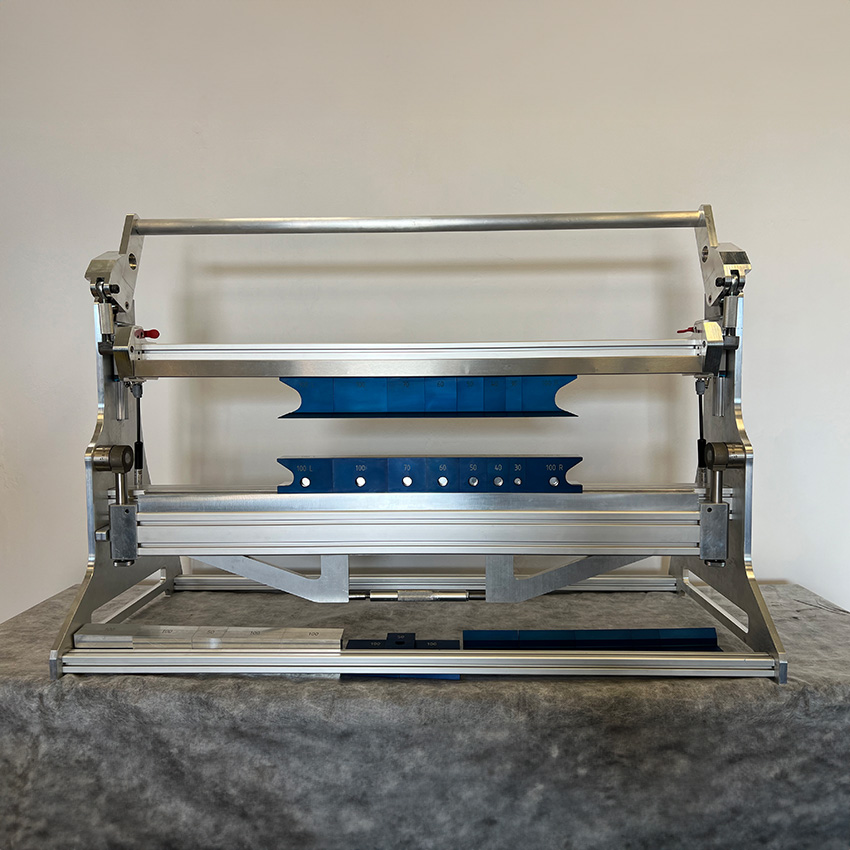

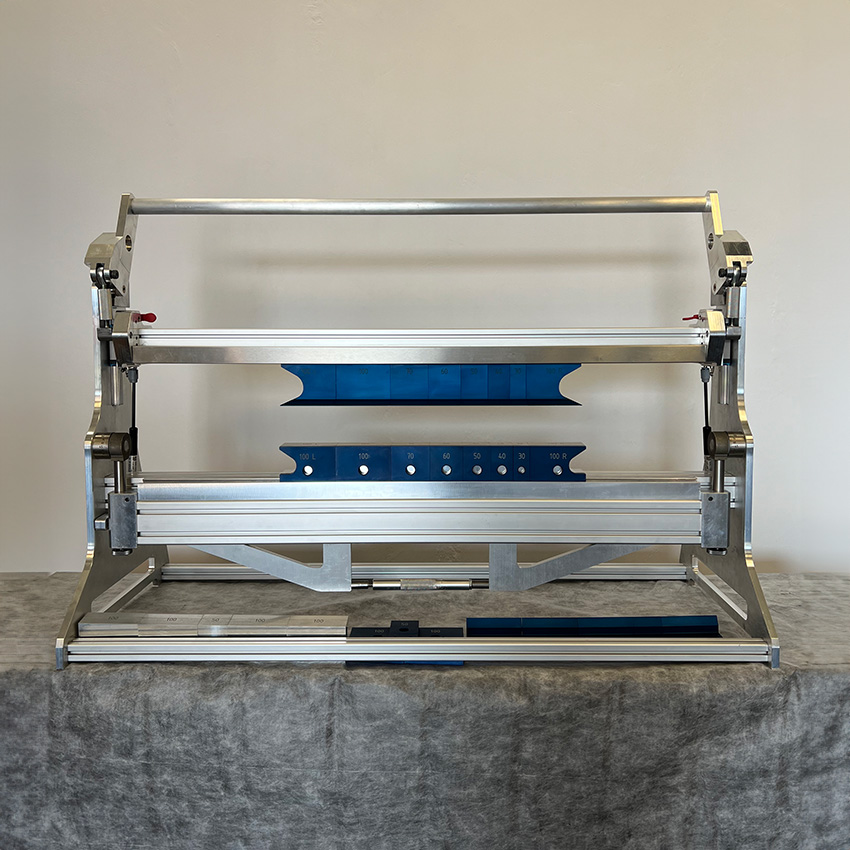

Biro manual segment brake (folding machine) BPSE-100S is a fully segmented sheet metal bending machine, made from high quality materials: about 90% hard alloyed aluminium parts are used to make the machine as light as it can be.
The idea was to create a machine mostly for outside jobs, making it efficient, ergonomic, easy and highly resistant to weather circumstances, rust and more. The machine can be mounted on a table by its weight, additional fixing points available on the bottom.
- Easy to transport, even for one person
- Upper and lower segments are anodized, which comes in a box
- Recommended for roofing and cladding, as well as sheet metal workers.
Specifications:
- Dimensions: 1180 x 500 x 685mm
- Weight: 40kg (without segments)
- Segment weight: approx. 11kg
- Working length: 1000mm

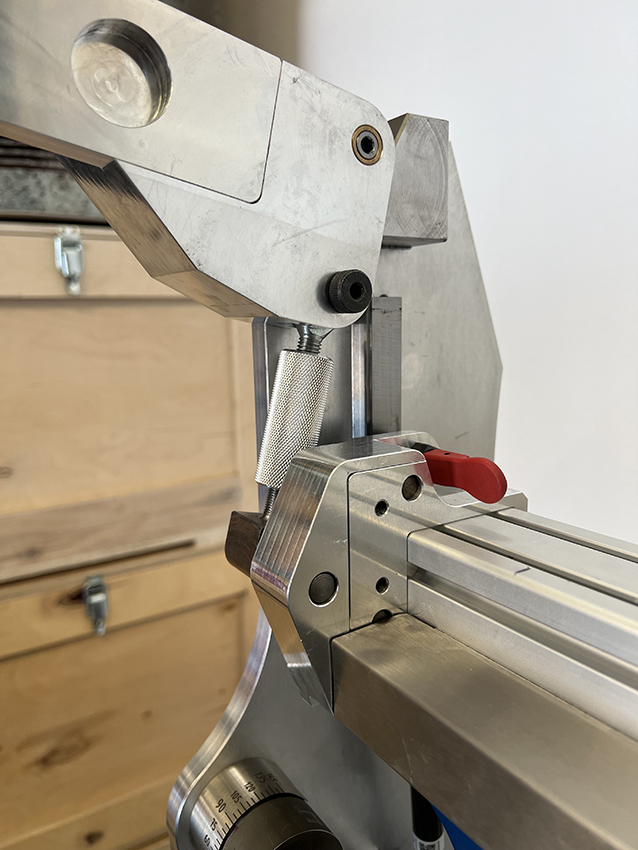

- Fast attachment system for both segments
- Upper beams height: 70mm
- Lower beams height: 60mm

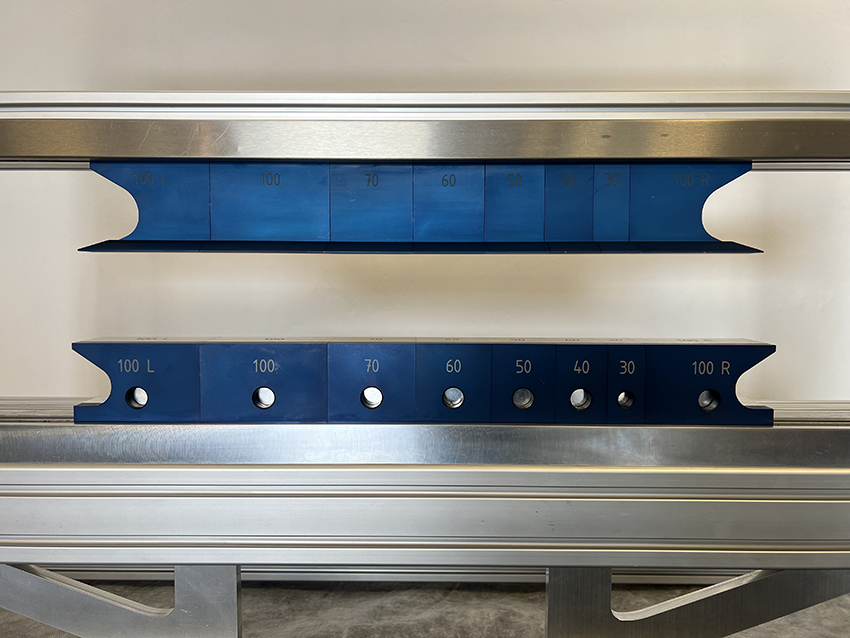

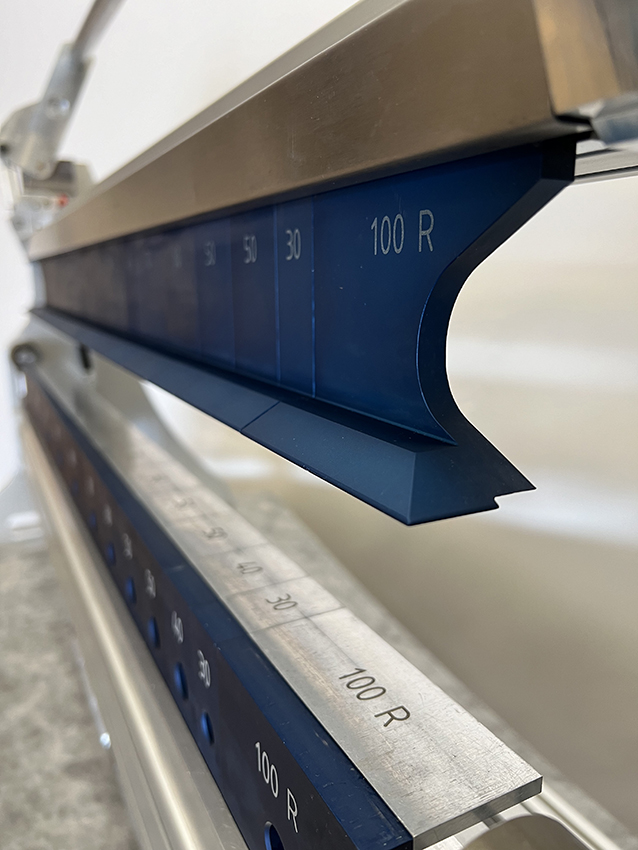

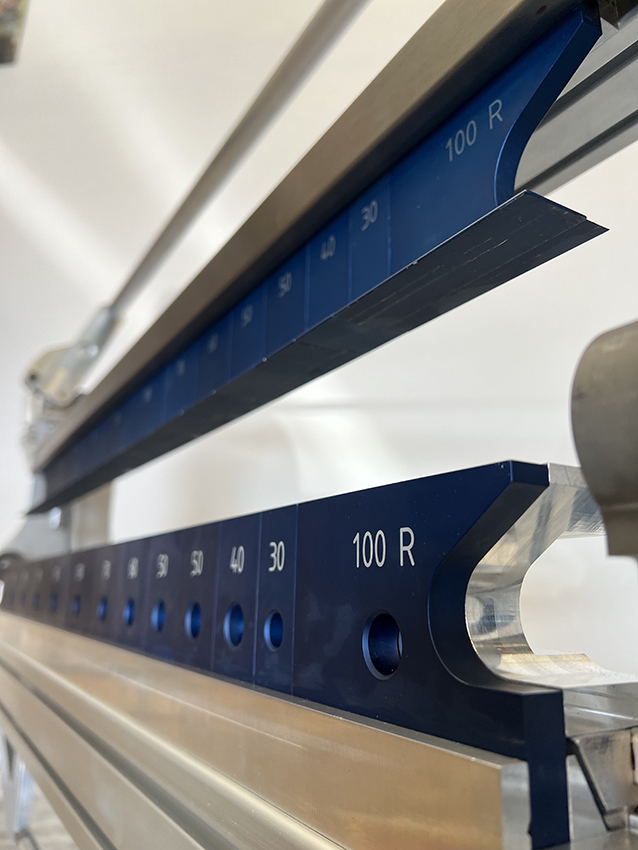

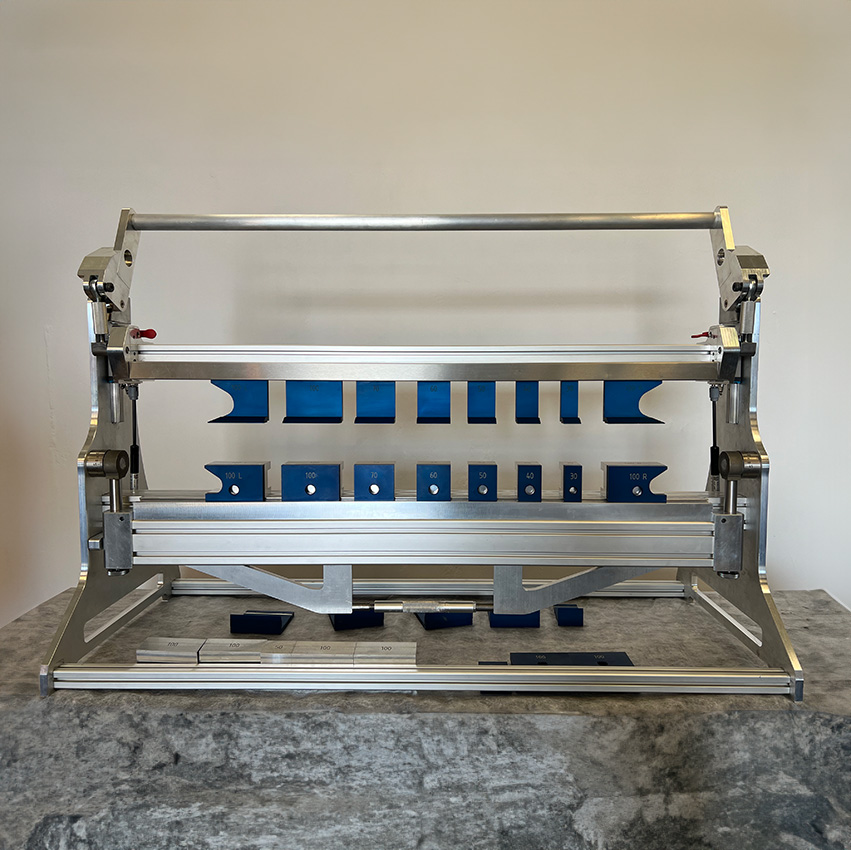

- Segments length: 1x30mm, 1x40mm, 2x50mm, 1x60mm, 1x70mm, 5x100mm, 2x100mm corner segments
- Opening height: 70mm
- Thickness capacity: Steel 0.6mm, Aluminium 0.8mm, Copper and Zinc 0.8mm, Stainless steel 0.5mm

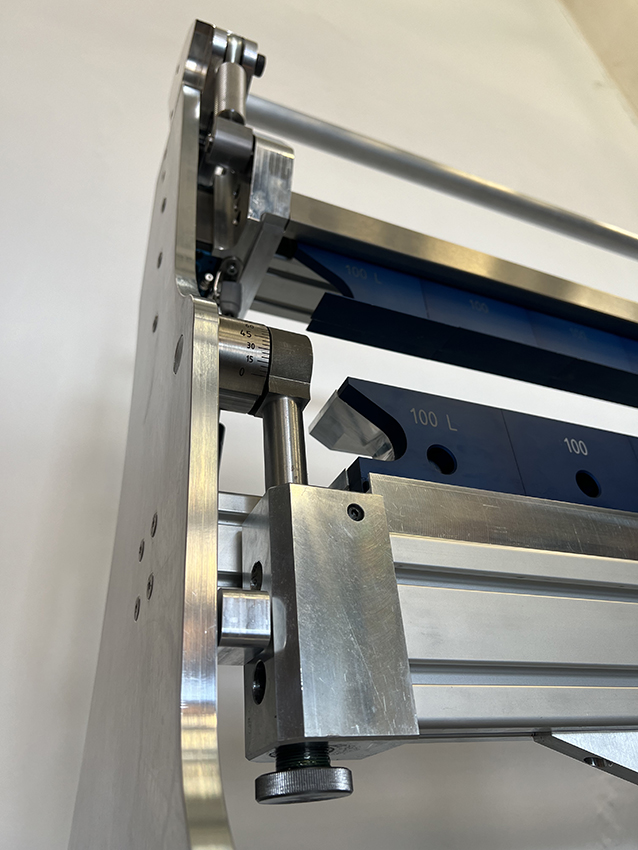

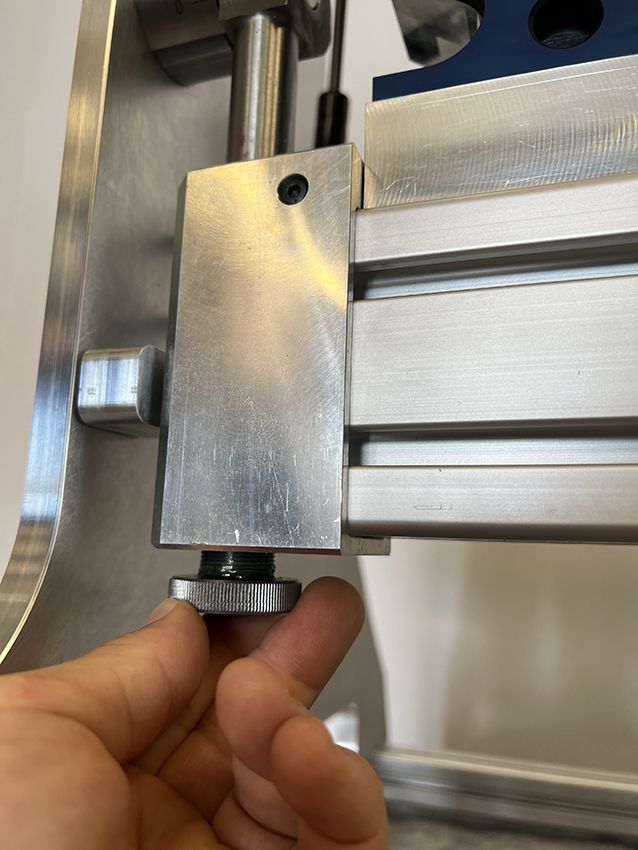

- Thickness turning option
- Bending arm spanning

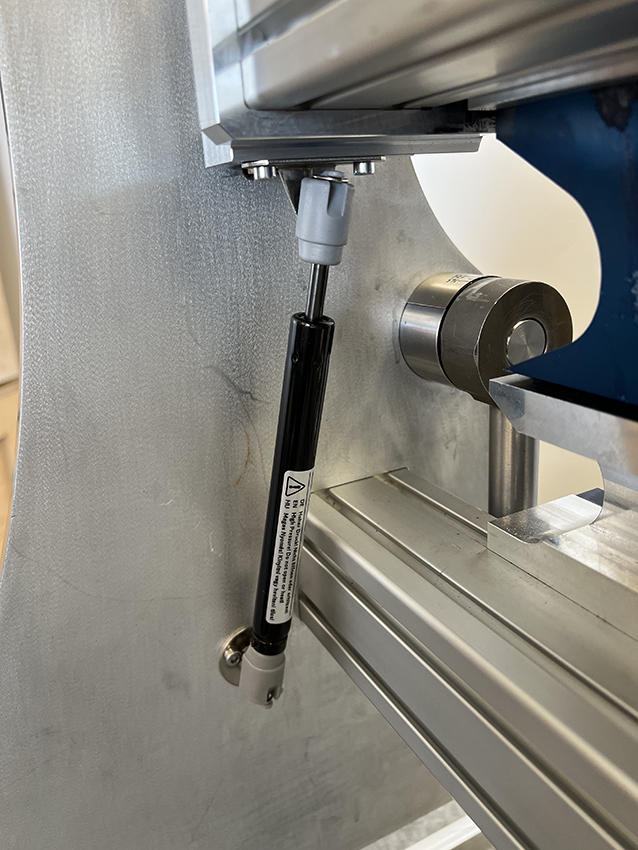

- Gas springs
- Assemble and disassemble to smaller parts in minutes
Benefits:
- Easy to handle
- Segments with fast clamping
- Fast assemble and disassemble
- Easy transportation
- Efficient work
- Super light weight
- Ergonomic
Accessories: Back table with adjustable height (coming soon)
