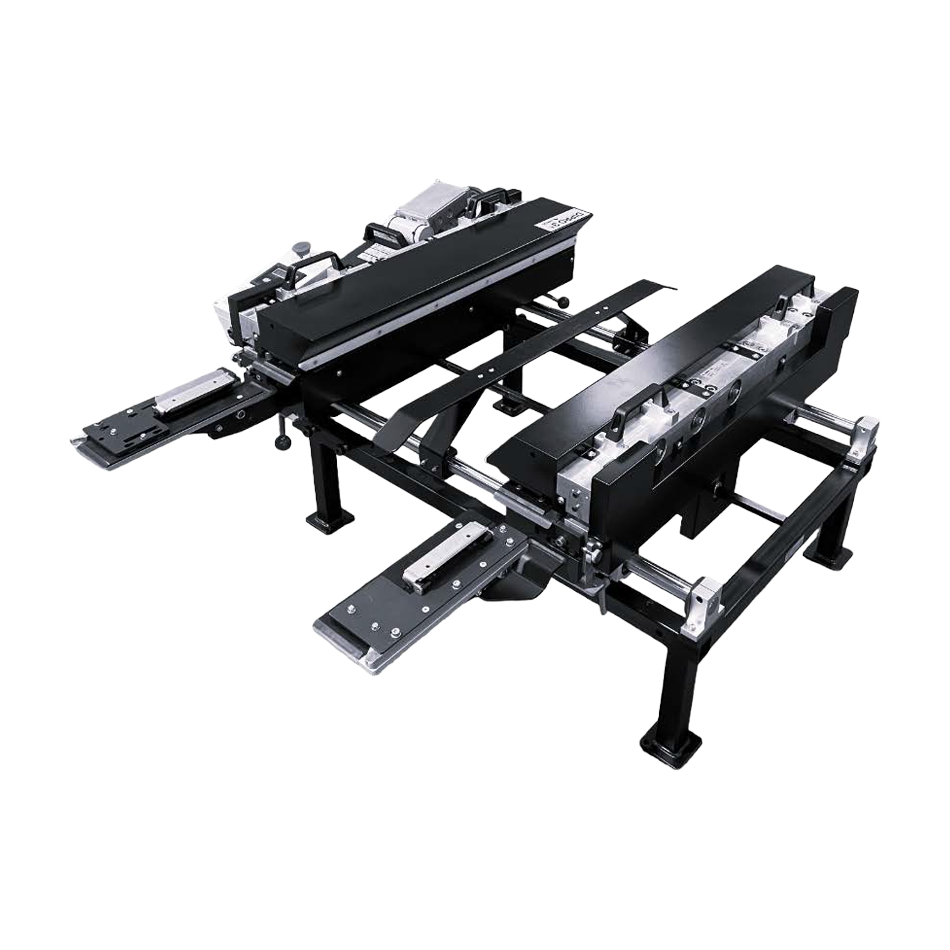

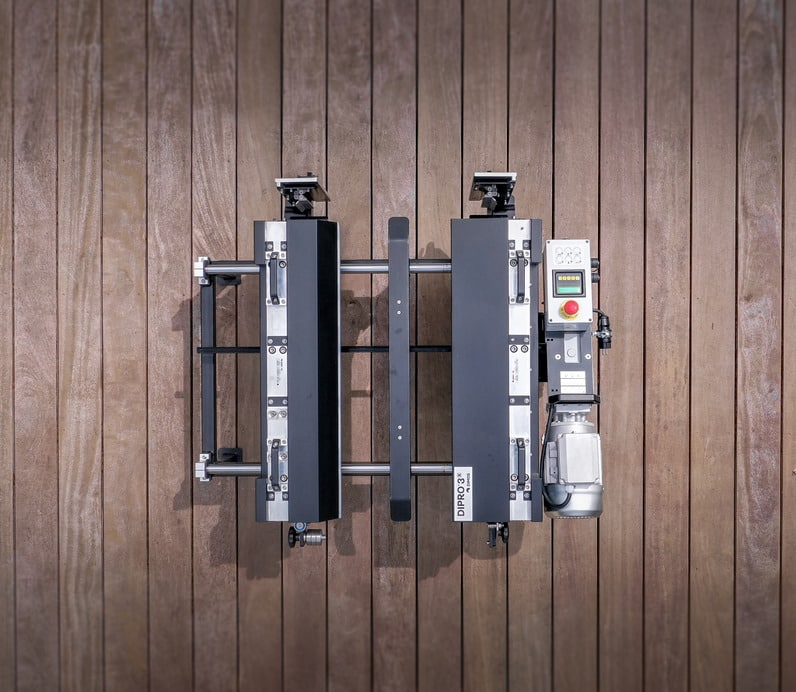

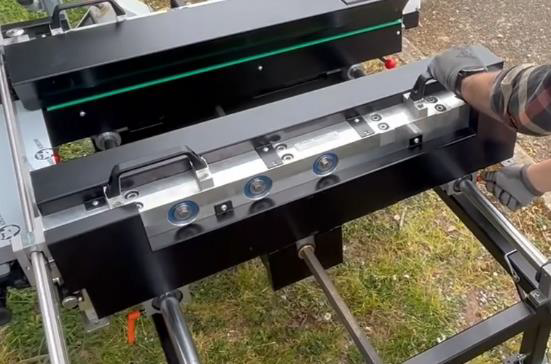

Dimos Dipro 3X Profiling Machine

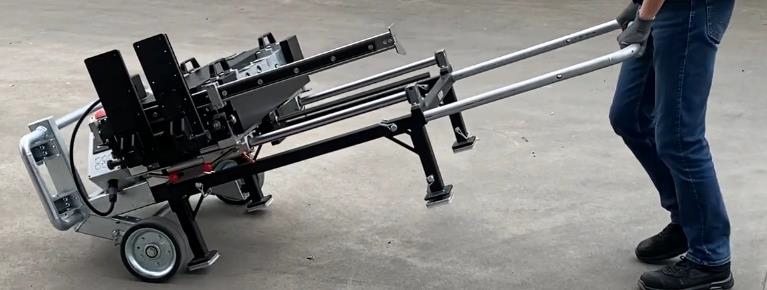

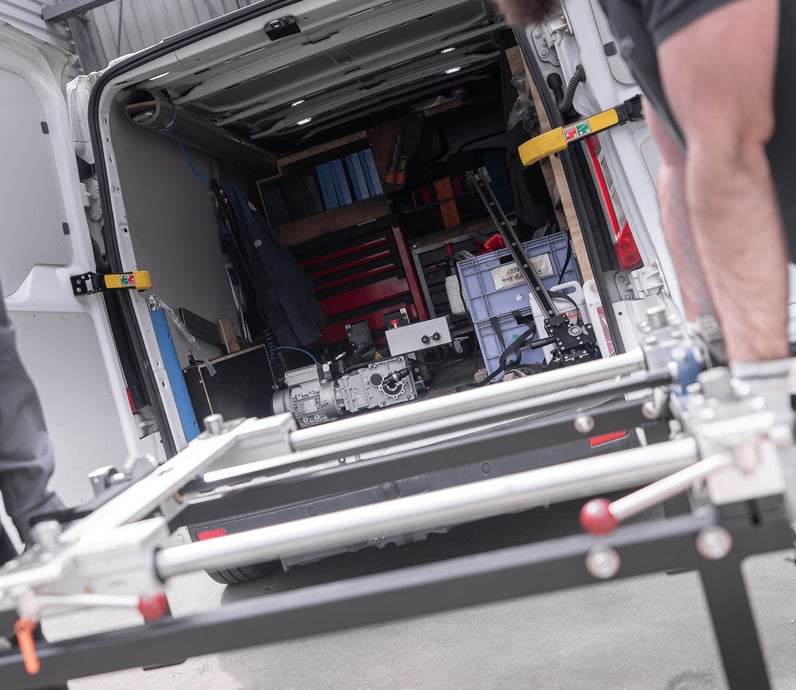

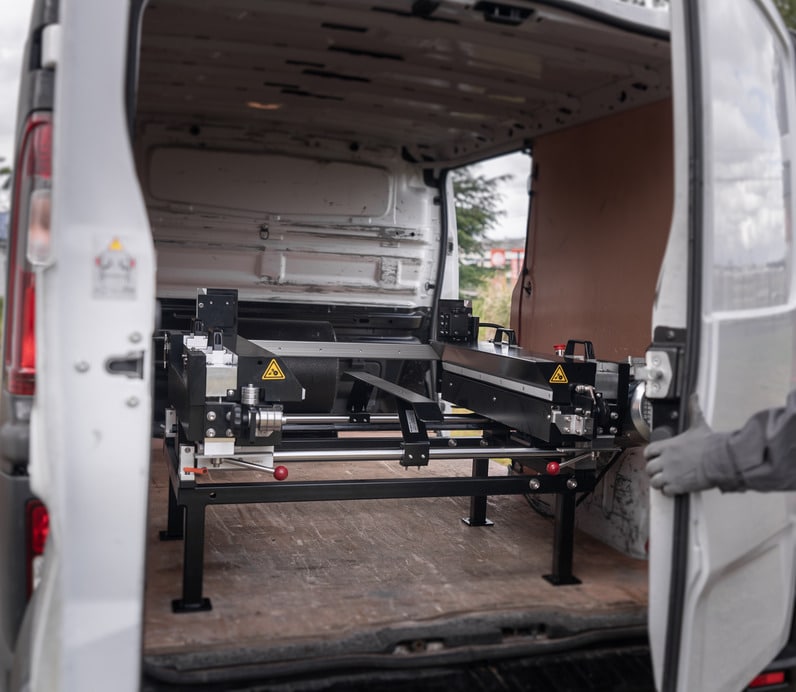

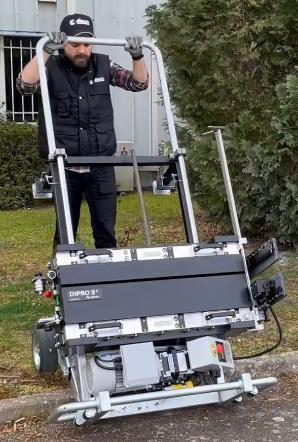

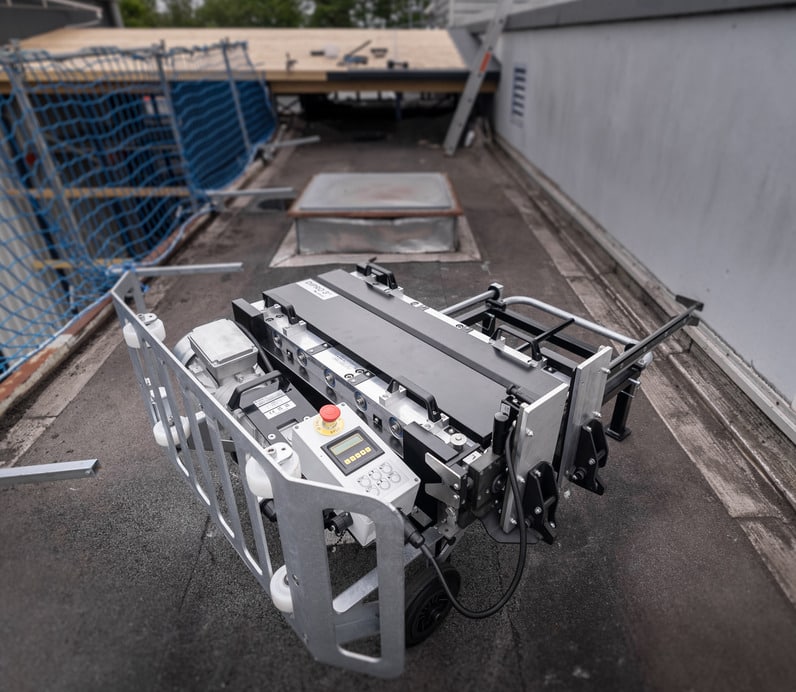

The Dimos Dipro 3X profiling machine is just as adaptable in the workshop as it is on the job site. Its robust design ensures durability even in outdoor conditions. With its ability to profile quickly and accurately, it delivers professional-quality results every time and across a wide range of metals. This scalable machine offers a multitude of options to meet the diverse needs of both novice and experienced roofers and cladders. Its tool-free operation allows you to use it anywhere, anytime.

Advantages:

• Premium quality rollers: Treated for superior durability and corrosion resistance
• Non-profiling function included on each train
• Profiling maintenance guide for the second pass included on each train

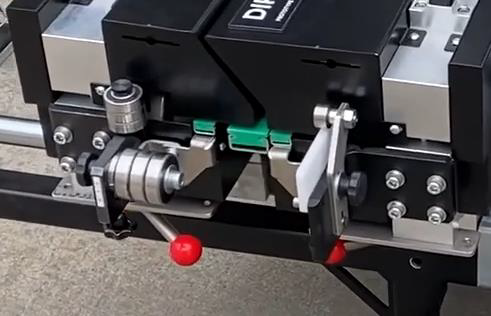

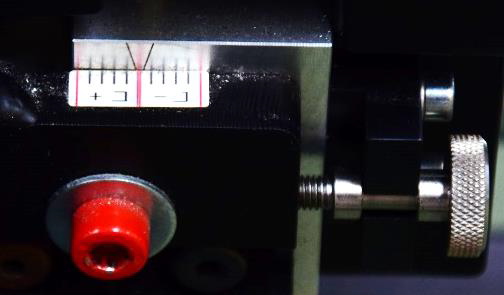

• Integrated bending adjustment device on each train
• Zero desynchronization risk and enhanced safety with a single engine

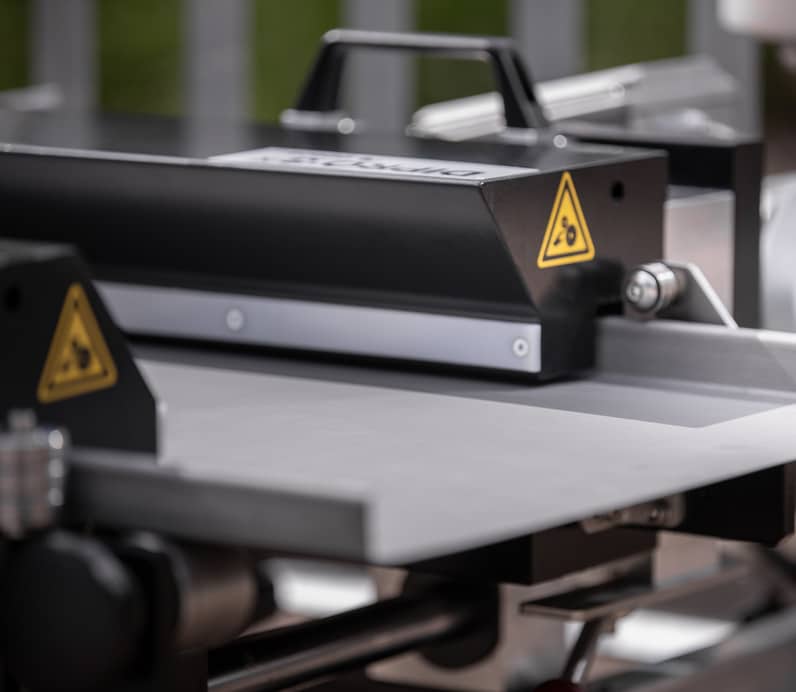

• Anti-marking central support for tray guidance

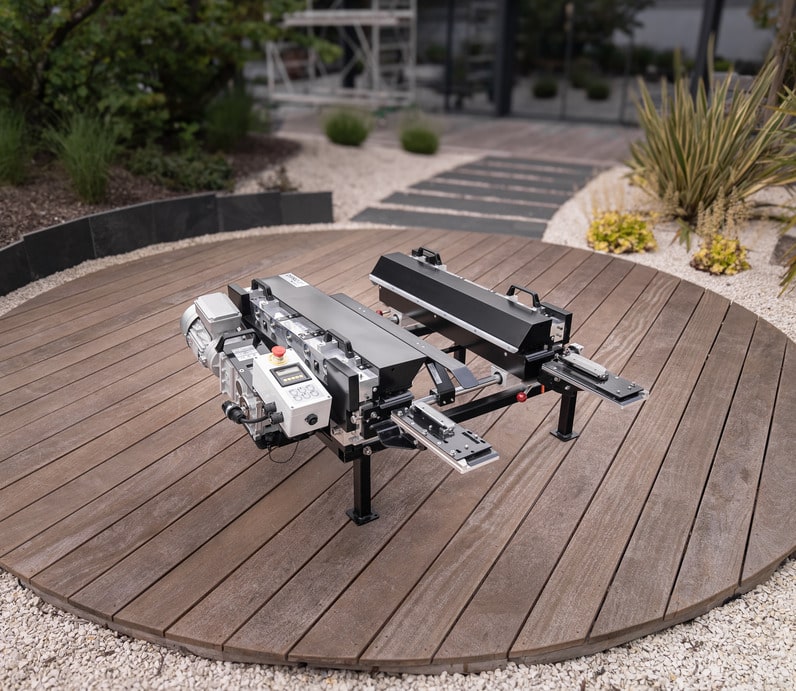

• Outdoor condition resistance to ensure longevity

Processable Metals:

• Steel: 0.4 to 0.75mm
• Aluminum: 0.4 to 0.8mm
• Copper: 0.4 to 0.8mm

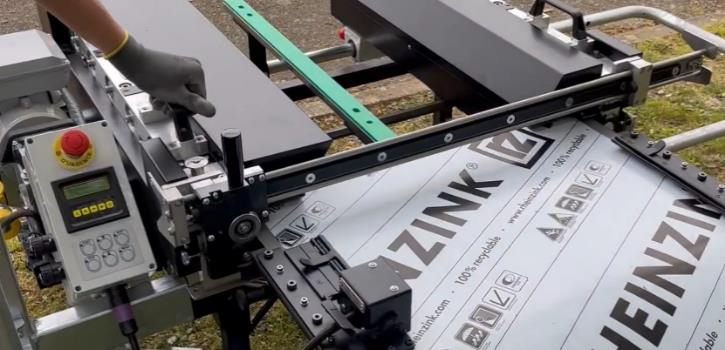

• Zinc: 0.4 to 0.8+mm
• Stainless Steel: 0.5mm

Capacities:

• Profiling speed: 16m/min
• Sheet width in one pass: 235mm to 800mm
• Single pass panel width – (mini)(M/F)(mm): 157mm
• Short panel length: 500mm

Profiling Types:

• Standing Seam Profiles: Ideal for square plan of standard roofing and cladding applications. Unlimited maximum width with the removal of one of the profiling trains.
• Rolled Edge Profile: Ideal for all curved roofs, such as turrets, apses, diamond-shaped four-sided and more roofs. Unlimited maximum width with the removal of one of the profiling trains
• Female/Female: Ideal for gaps between openings, such as windows, and at the end of roofing and cladding. Unlimited width with the removal of one of the profiling trains
• Male/Male: Ideal for starting points at projecting eaves and jambs, for roofing and cladding. Unlimited maximum width with the removal of one of the profiling trains.
• Female Single Profiling: Ideal for wall terminations in roofing or cladding. Unlimited maximum width with the removal of one of the profiling trains.
• Male Single Profiling: Ideal for wall starts and transitions in roofing and cladding. Unlimited maximum width with the removal of one of the profiling trains.

Weight/Dimensions:

• Dimensions: 1450x1100x680mm
• Total weight: 205kg
• Engine voltage: 110 V or 220 V
• Drive Power: 1.1 kW
