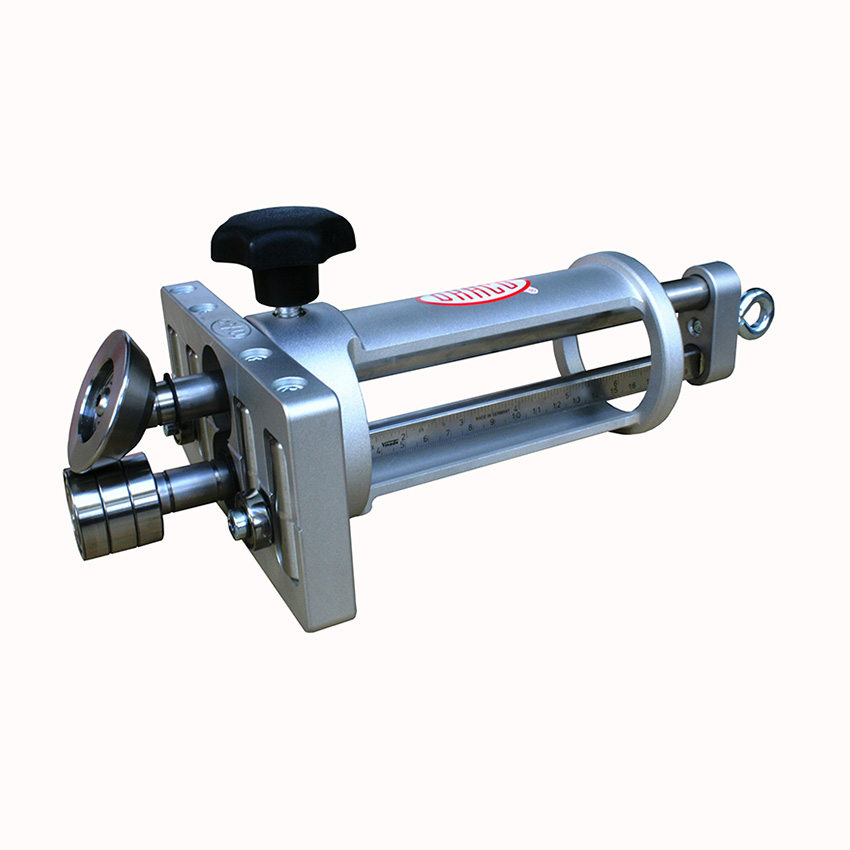

Draco Roll-Bender Supra SB

Draco Roll-Bender Supra is a flexible bender to bend from 0° to 120°, upstand height from 30 mm up to 200 mm.

Universal mobile bending tool to bend and form all kind of materials straight, concave or convex.

With 4 guide rollers the Supra-Bender offers you a stabile guidance and an easy handling.

This bender forms many profiles. Bending up and down, making drip edges, eaves cladding, valley constructions, windowsills and many more. Bending height is continuously adjustable (graduation in mm and inch).

How is it done?

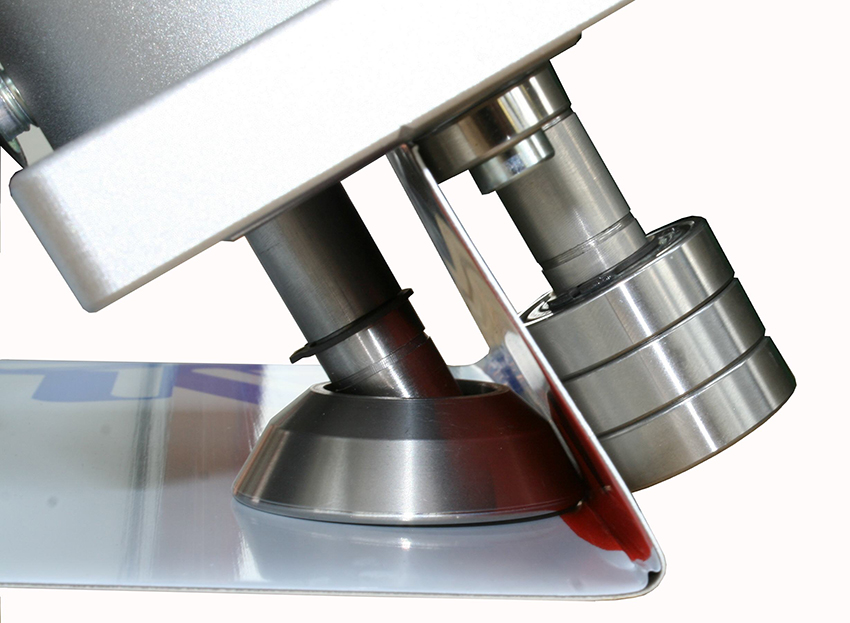

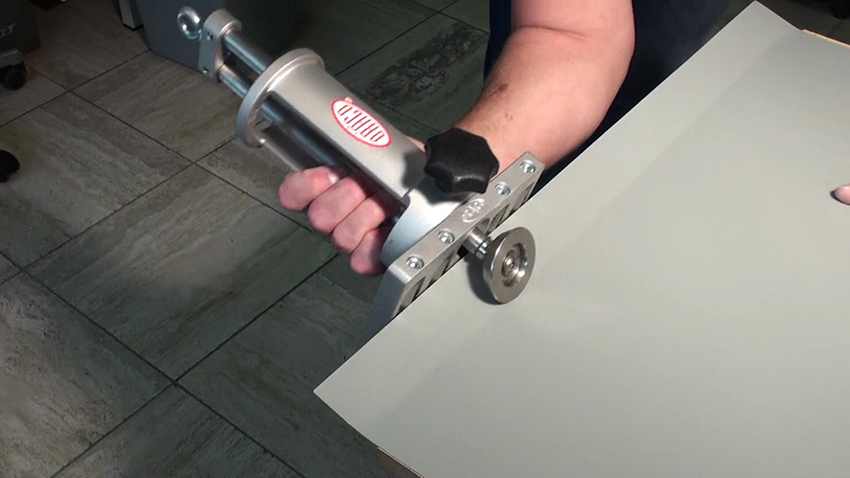

Very easy. Adjust to desired bending height by using integrated measuring device and lock it with the setscrew. Now place metal between the bending rolls. The single bearing is on top and shows the direction in which you will bend (the other 3 bearings carry the force). Now move Bender forth and back by pushing slightly up till requested angle is reached. You achieve a perfect result without damaging painted or coated metal.

Benefits of roll forming:

• Flexible manufacturing process
• Easy customization and freedom when it comes to giving shape to a profiled section even at the jobsite
• Shorter travelling time
• The required tools are small and affordable
• Shorter production times imply prompt delivery and a faster completion of the job
• Optimal leverage making work even more easy
• economic price
• etc.

Attention: Due to the smallest bending height of 30 mm, standing seam profiles cannot be produced. For this we recommend the DRÄCO EcO-Bender 3/200, or alternatively the DRÄCO Mini-Bender 3/200.
