FalzSid Strip Joint Machine with hand crank – SJM
USD $ 1,220.00

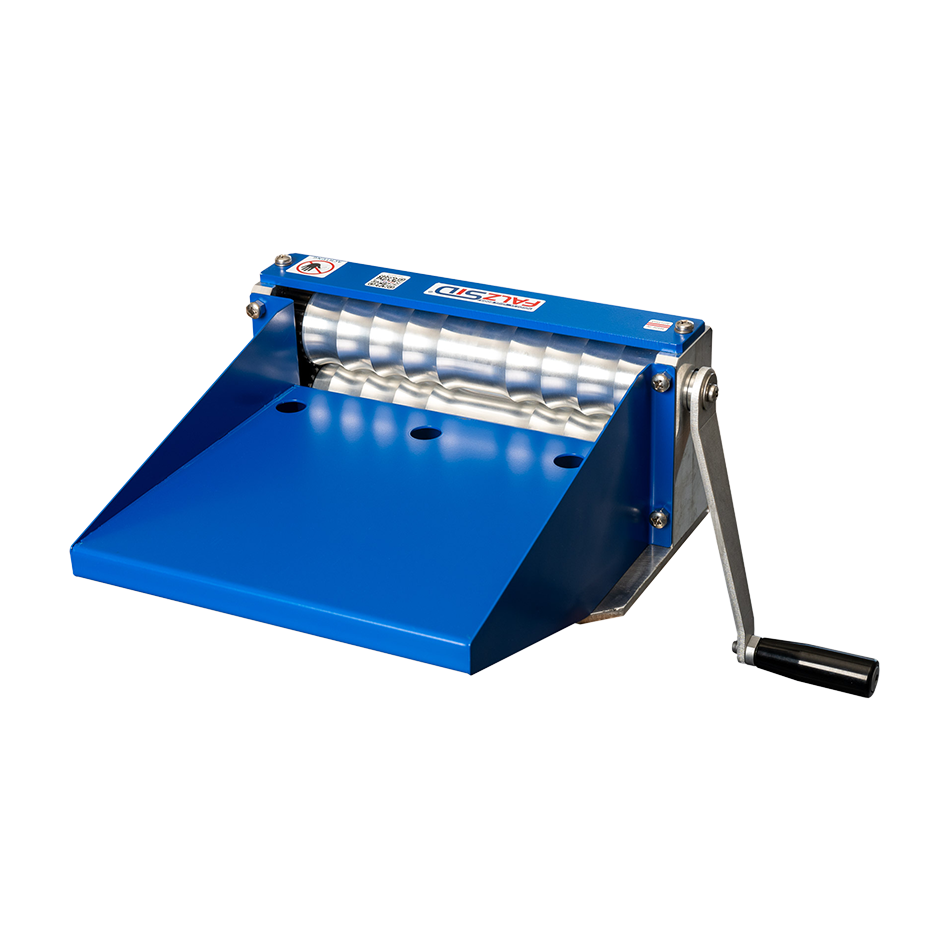

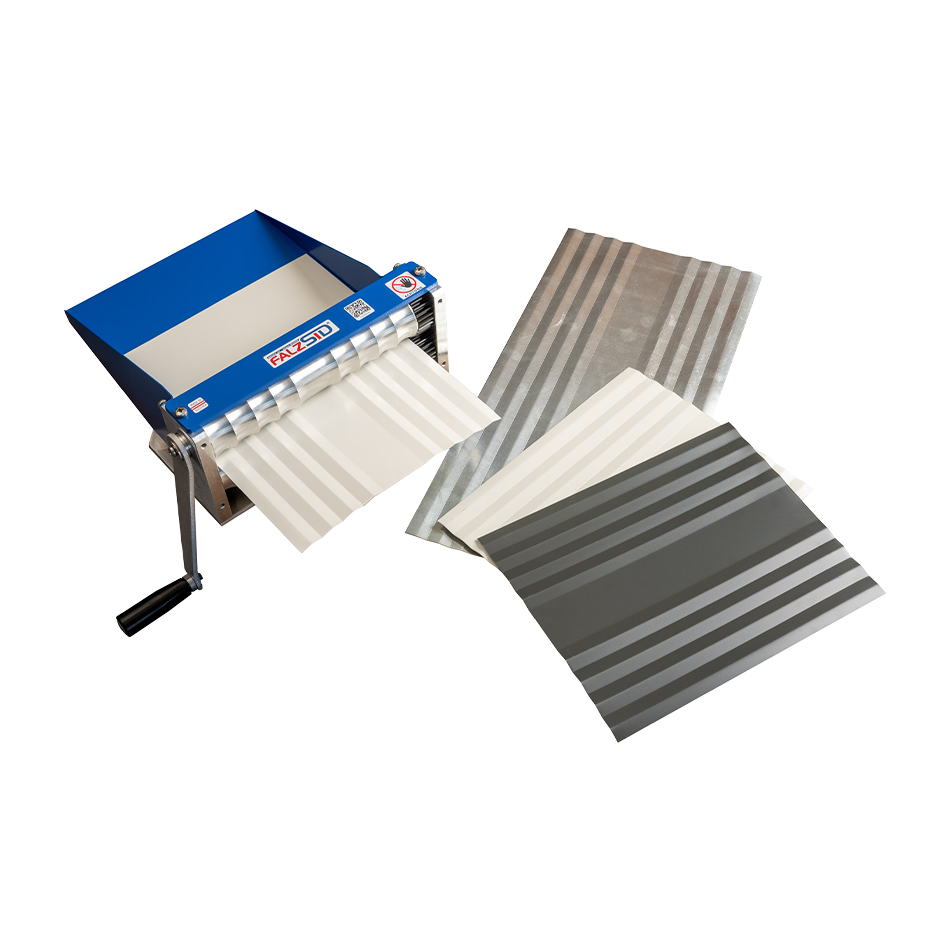

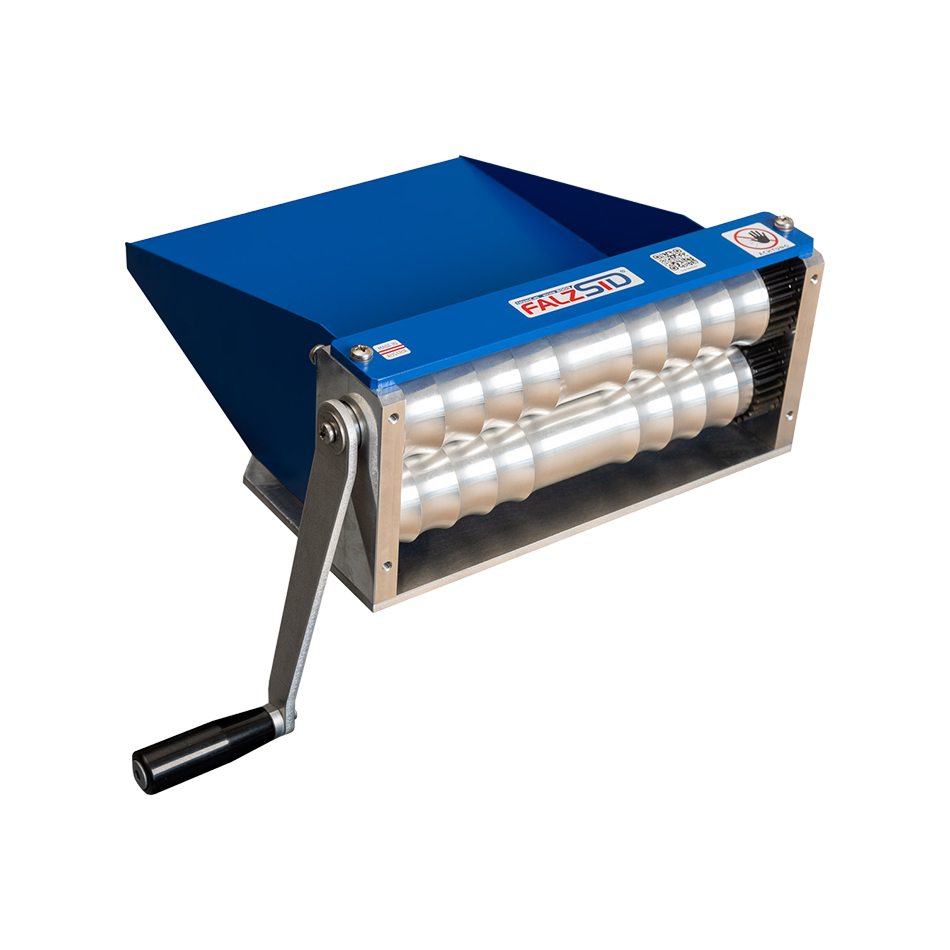

FalzSid strip joint machine with hand crank.
Designed with optimized geometry and a smooth centre web, the formed strip joints ensure stress-free connections, clean aesthetics, and reliable performance. Safety in severe weather conditions — including wind and heavy rain — has been confirmed by an accredited construction engineering institute.

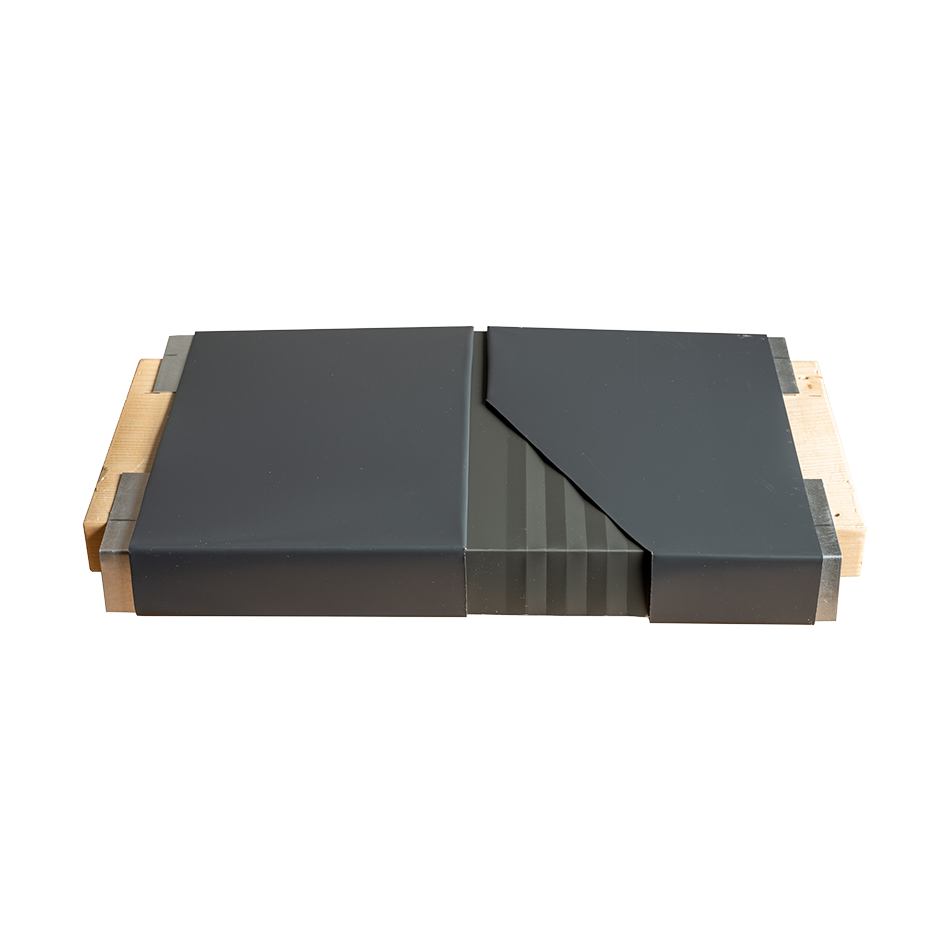

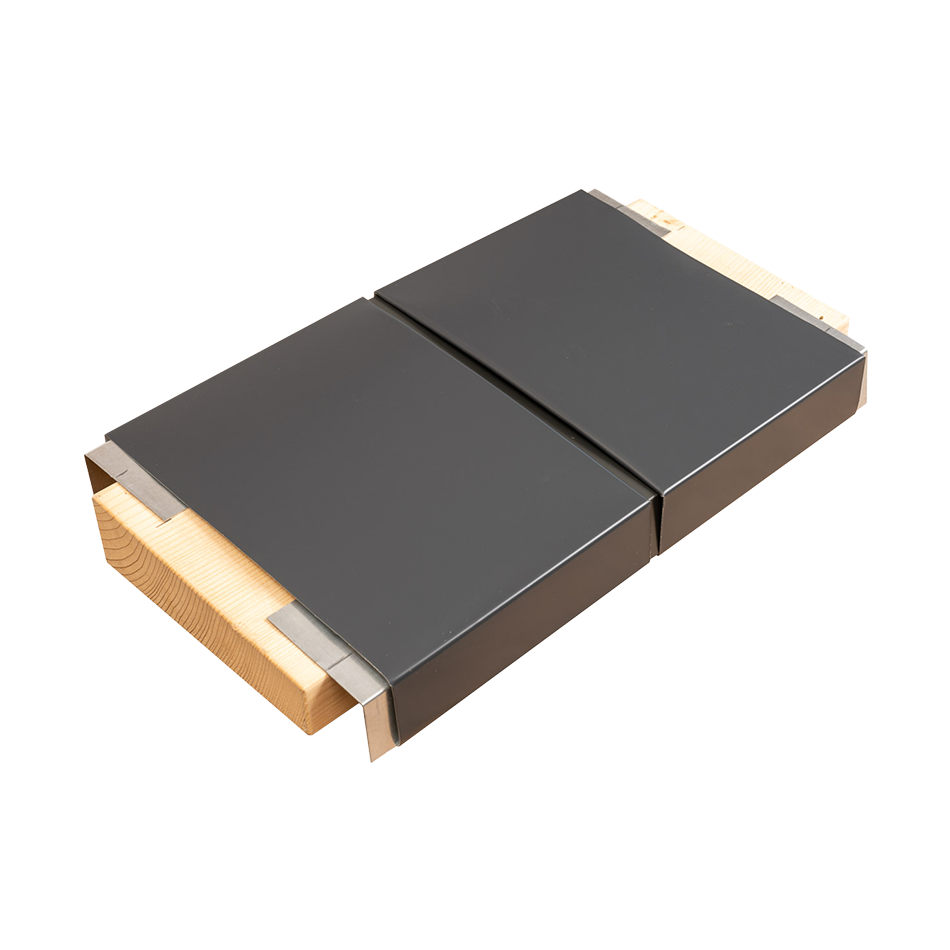

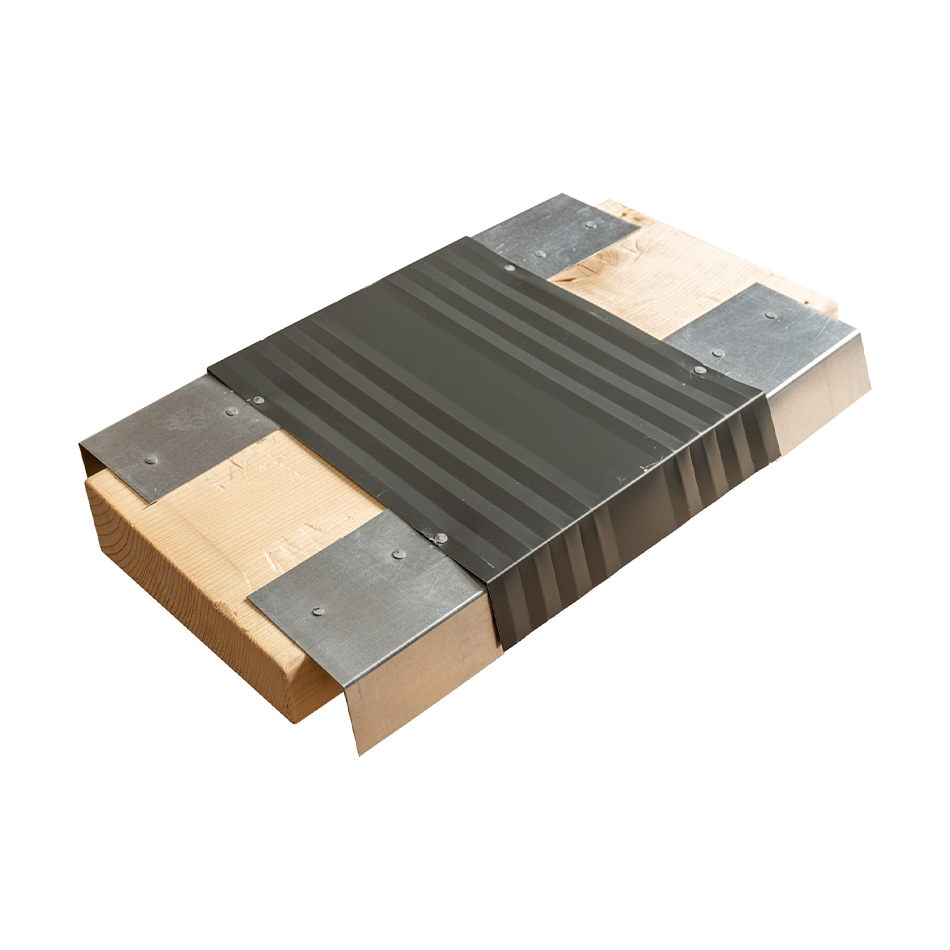

Strip joint connections are ideal for parapet caps, copings, cornices, window sills, ridge flashings, and other cover applications.
Frequently Purchased Together
FalzSid strip joint machine with hand crank.
Designed with optimized geometry and a smooth centre web, the formed strip joints ensure stress-free connections, clean aesthetics, and reliable performance. Safety in severe weather conditions — including wind and heavy rain — has been confirmed by an accredited construction engineering institute.
Strip joint connections are ideal for parapet caps, copings, cornices, window sills, ridge flashings, and other cover applications.
Key Advantages
-
Rainproof connection from a 3° roof pitch
-
No additional sealing required (optional sealing tapes can be used if specified)
-
Compensates for thermal expansion
-
Quick and easy installation
-
Clean, professional appearance
Technical Specifications
- Suitable for all coated and uncoated sheets
- Roll width: 250 mm
- Sheet thickness capacity:
-
Aluminum, zinc, copper: up to 1.0 mm
- Steel: 0.75mm
-
Stainless steel: up to 0.6 mm
-
| Weight | 7.1 kg |
|---|---|
| Dimensions | 32 × 33 × 15 cm |
