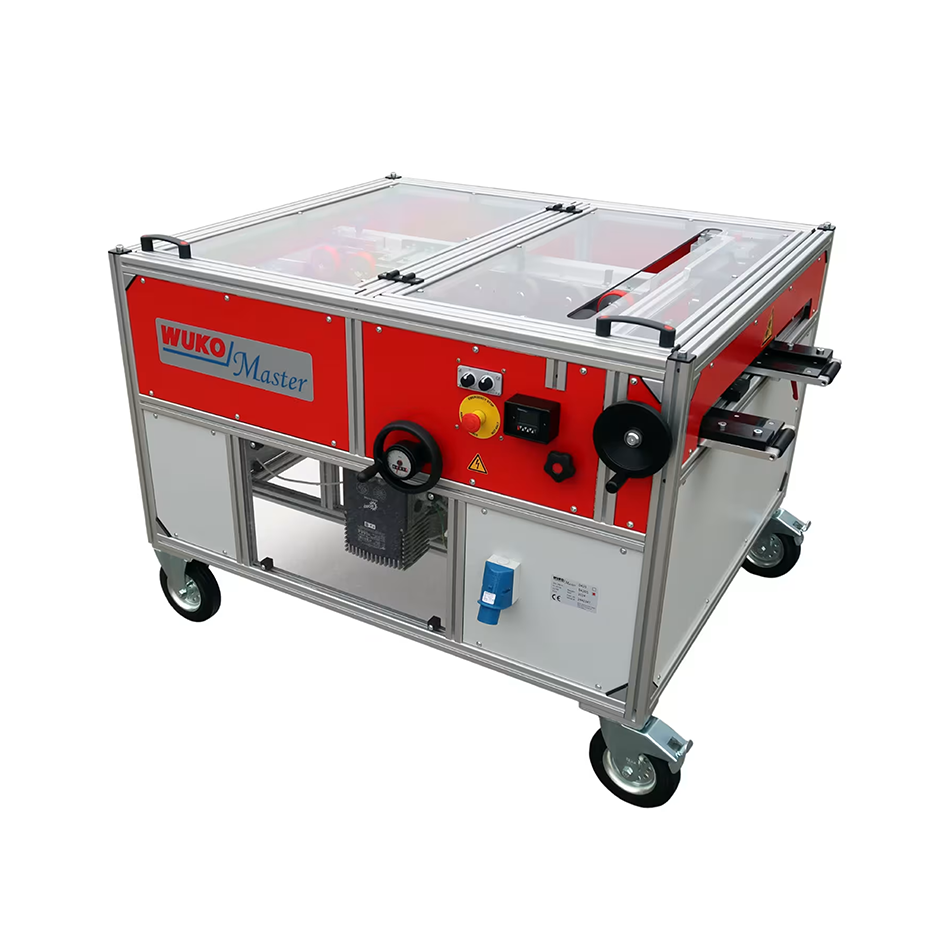

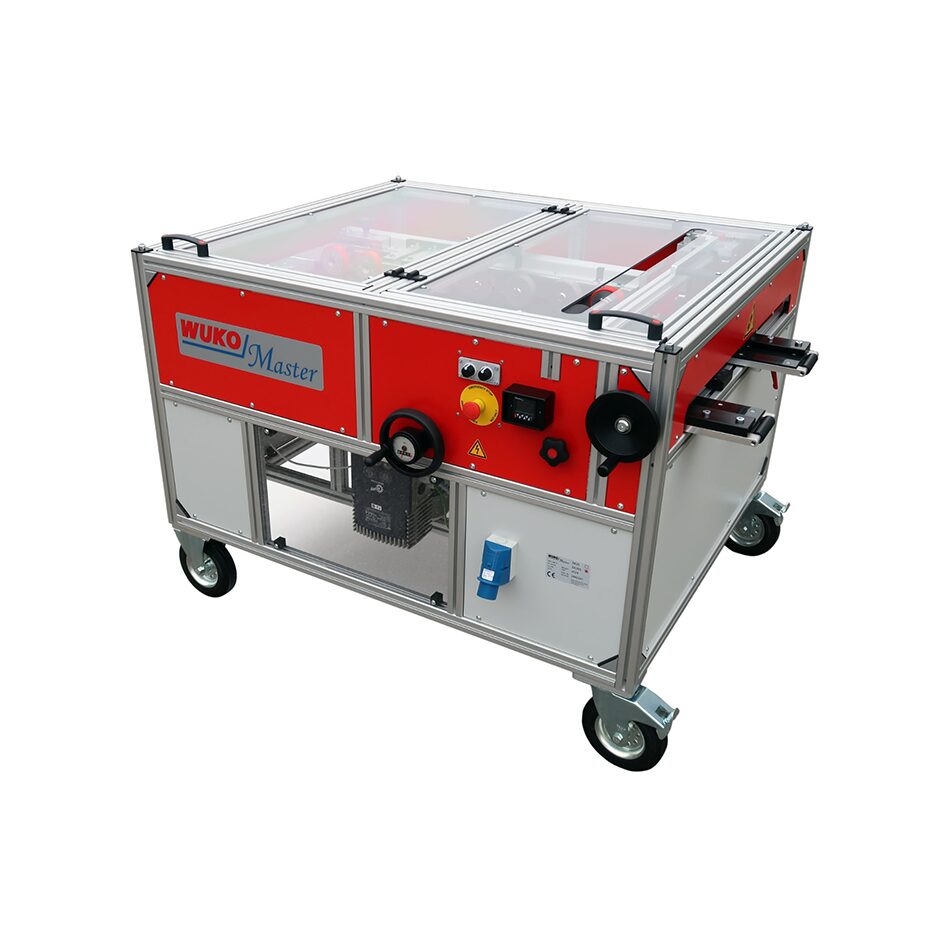

The Wuko Master Panel Profiling machine creates profiles for single or double lock 25mm/1″ high standing seams. With the modular aluminium profile system frame and upper machine cover you will be able to have a clear view of the profiling process and easy access for any adjustments. This machine is ideal for profiling in your workshop or on the construction site!
Creates profiles for single or double lock 25mm/1″ high standing seams only!
Features:
- Machine frame made of modular aluminium profile system
- Frame made mobile with two fixed and two swivel castors with brakes
- Upper machine cover: Swing doors, easy to open, with safety switch, frame elements made of transparent, impact-resistant polycarbonate. Clear view during profiling process, easy access for adjustment and service
- 120V or 220V motor with frequency converter for continuously variable working speed: 0 – 12m/min. huge advantage for rounding the panels and for one-sided profiling
- Forwards and backward run

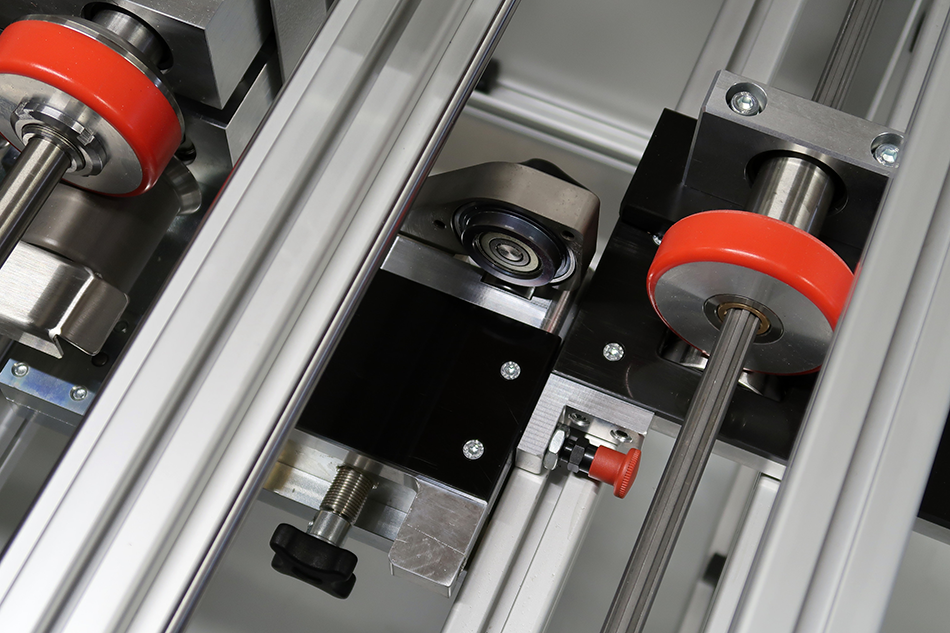

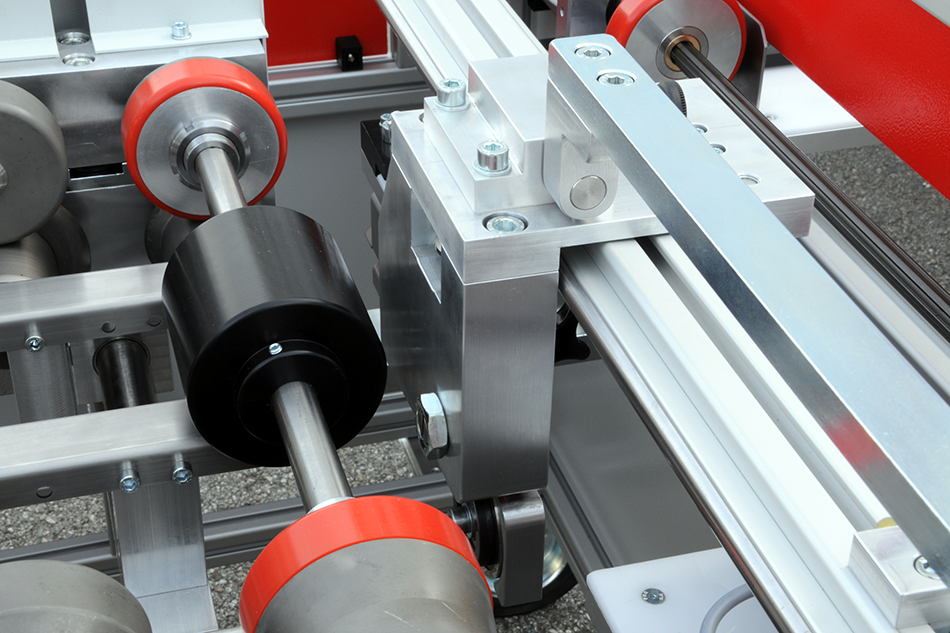

- Available with longitudinal cross cut device (0402S)
Profiling
- Fabrication of the profile for the single or double-lock standing seam height 25mm/1″

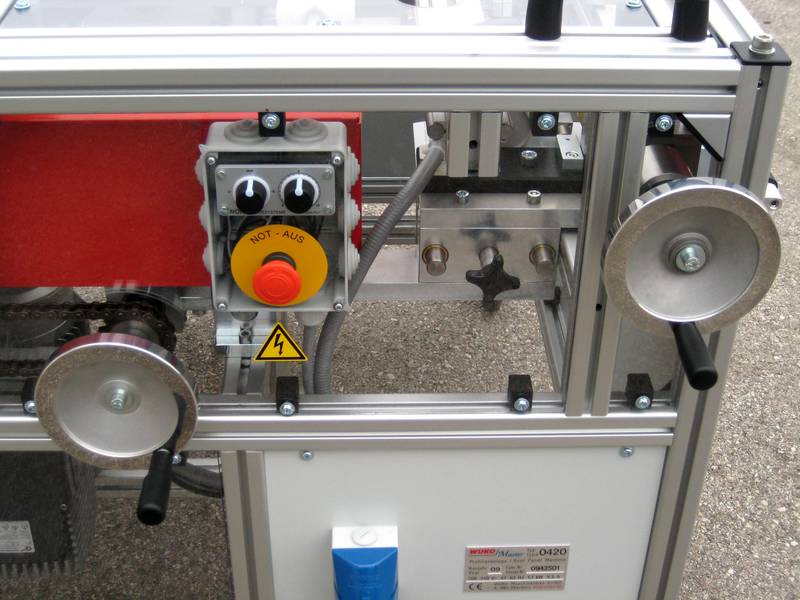

- Working width between 290 and 810 mm/11.5 and 32 continuously adjustable by hand wheel over two spindles. Panel width about 210-730 mm/8.3-28.7

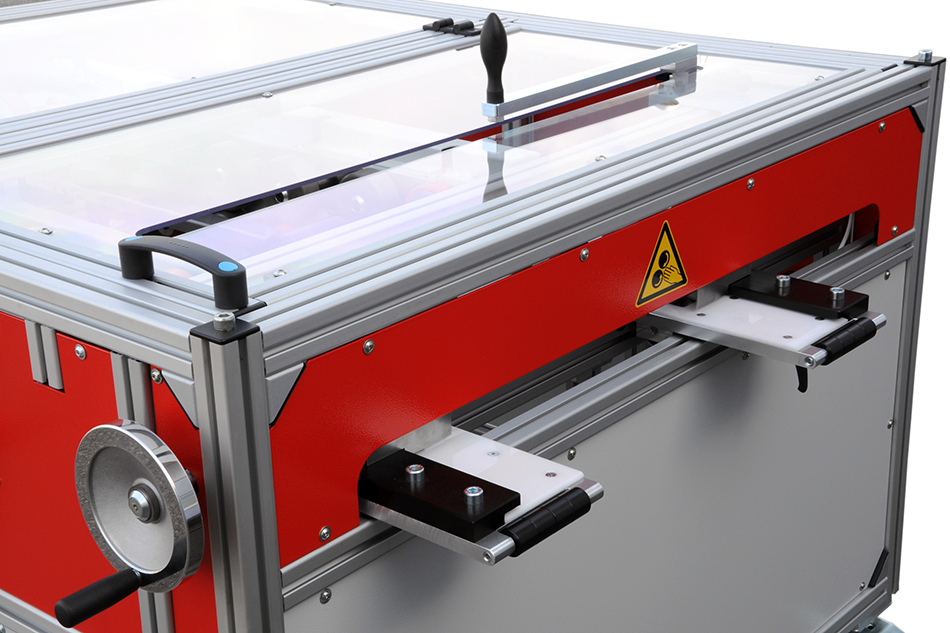

- Inlet guides easily and precisely adjustable (measure correction on the profile)
- Clean profile, poor in tension, made by eight hardened roll forming stations
- 8th forming station for aligning the panels and for curving the panels – convex or concave- smallest radius about 6 m/20

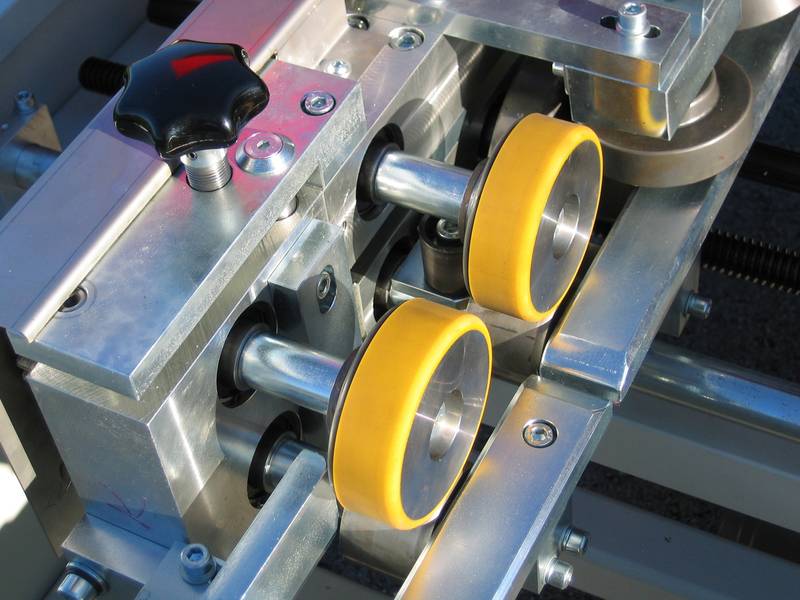

- Cut-proof, extremely resilient polyurethane coated drive rollers

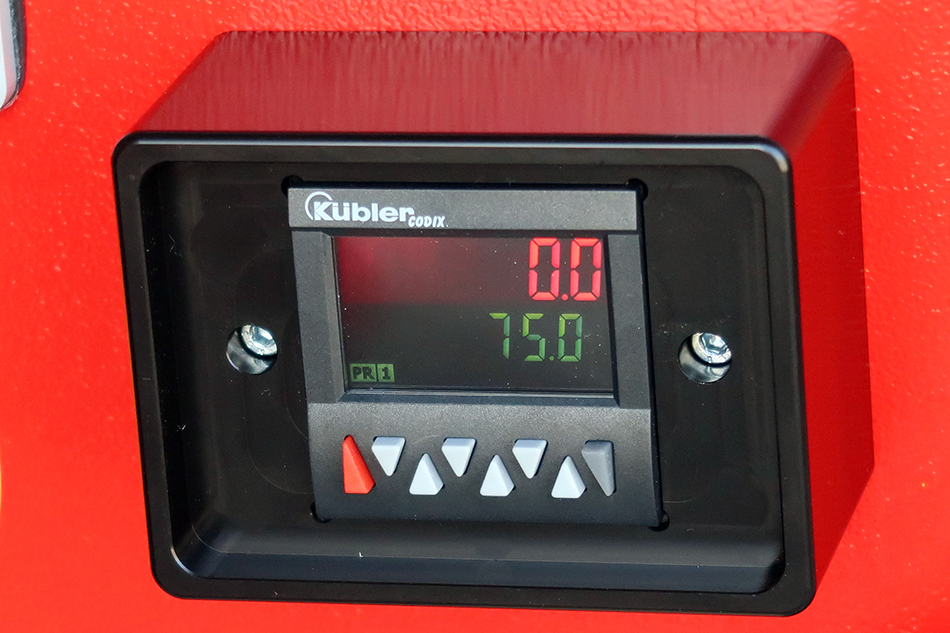

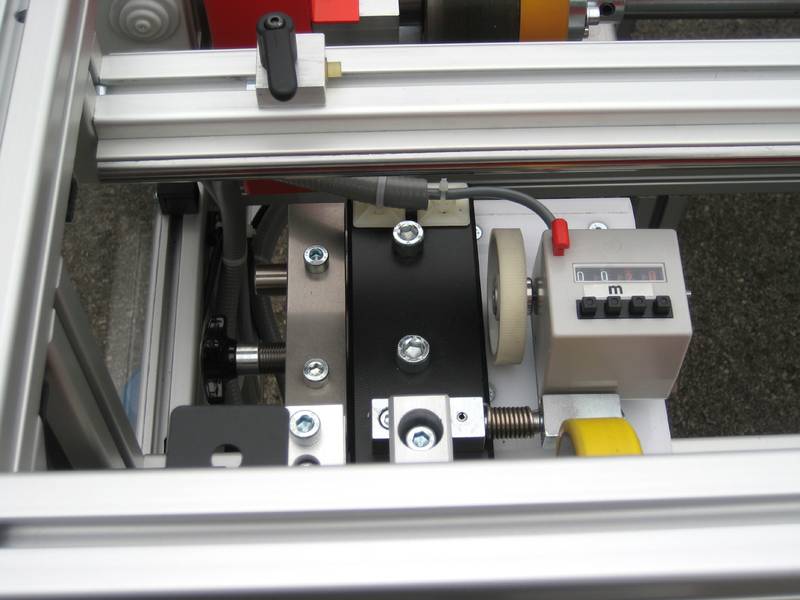

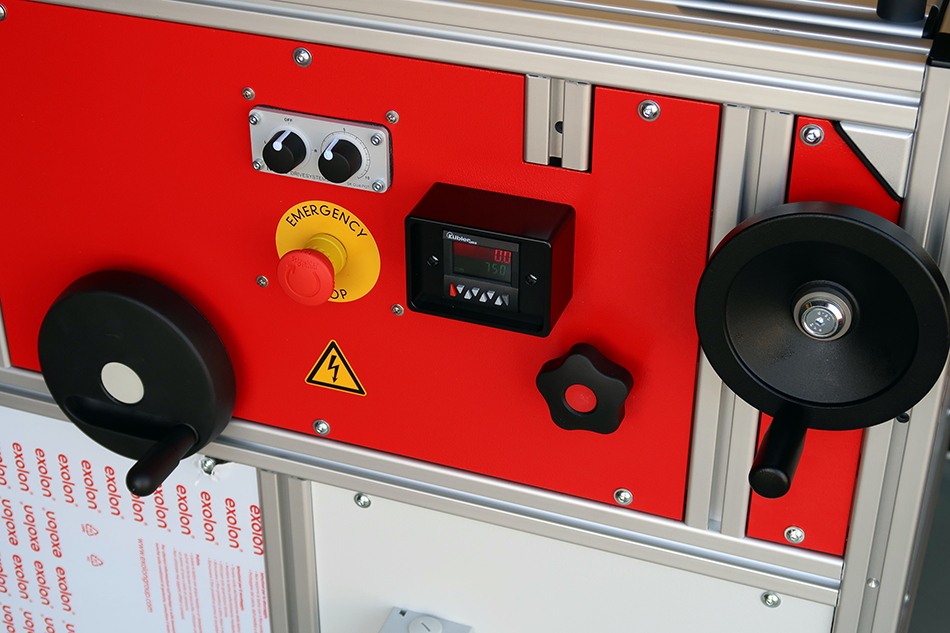

- Electro-mechanic preset counter- safely placed within the frame

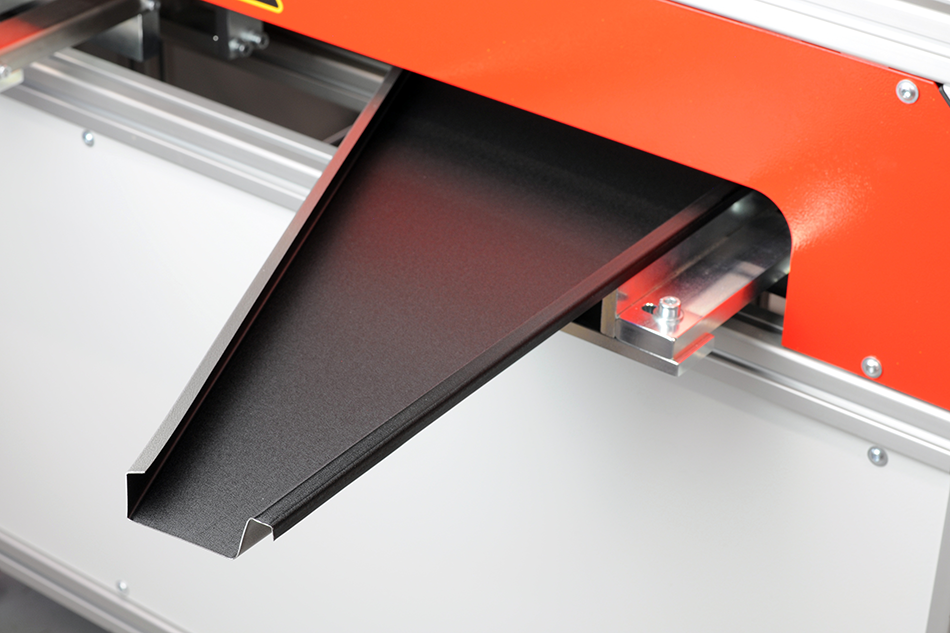

- Also for profiling short (min. length about 500 mm/20) or tapered panels
Technical Data
- Maximum Sheet Metal Thickness: Galvanized steel: 0.7 mm/0.028, Aluminium, Copper, Zinc: 0.8 mm/0.031, Stainless Steel: 0.5 mm/0.020
- Motor: 120 V
- Dimensions: Length: 154 cm/60.6 (with guides), Width: 131 cm/51.6 (with handles), Height: 105 cm/41.3
- Weight: Approx. 320 kg/700 lbs
