Ideal for the roof & facade industry, drip edges, transverse fences, flood defence, losange’s are simple and quick to manufacture.
Details
- working width = 1120 mm
- weight = 80 kg only
- Opening of top clamping bar 60 mm
- Aluminium, Copper, Lead, Zinc 0.8 mm
- Steel 0.7 mm / up to 24 gauge
- Stainless steel 0.5 mm
- ideal for roof and wall cladding
- solves all technical bending problems
- clamping of sheet metal with eccentrics and hand lever
- gas-pressure spring counterbalances top clamping bar
- bending possible in all technical directions for roof and wall claddings
- brake can also be screwed on to a working bench
- brake removable from frame, for easy transport to the roof
- all parts used on the brake are made of rustproof materials.
Standard Equipment

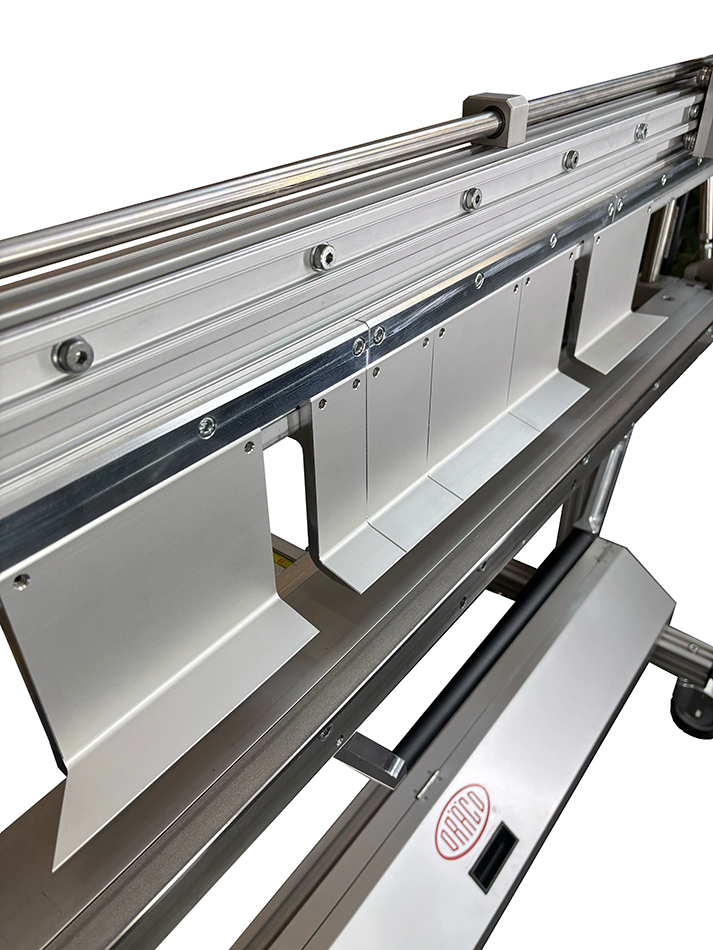

- segments for top clamping bar 560 / 202 R / 202 L / 102 / 127 / 76 / 52 mm
- assortment for bottom bending bar 1120 / 520 / 445 / 290 mm.
- frame with 4 castors
- allen wrenches

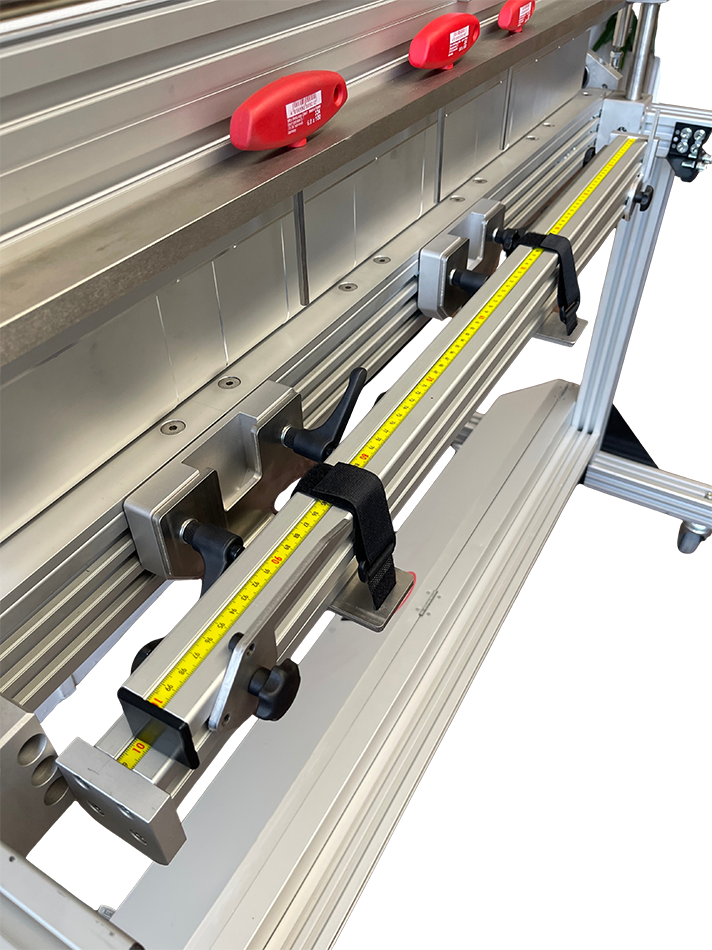

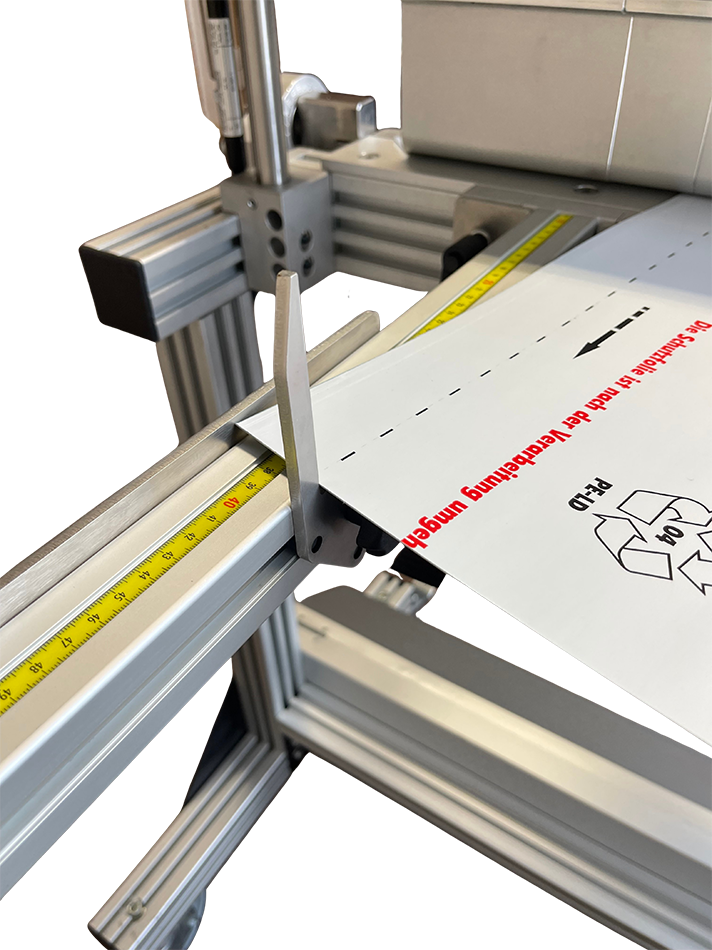

- straight fence

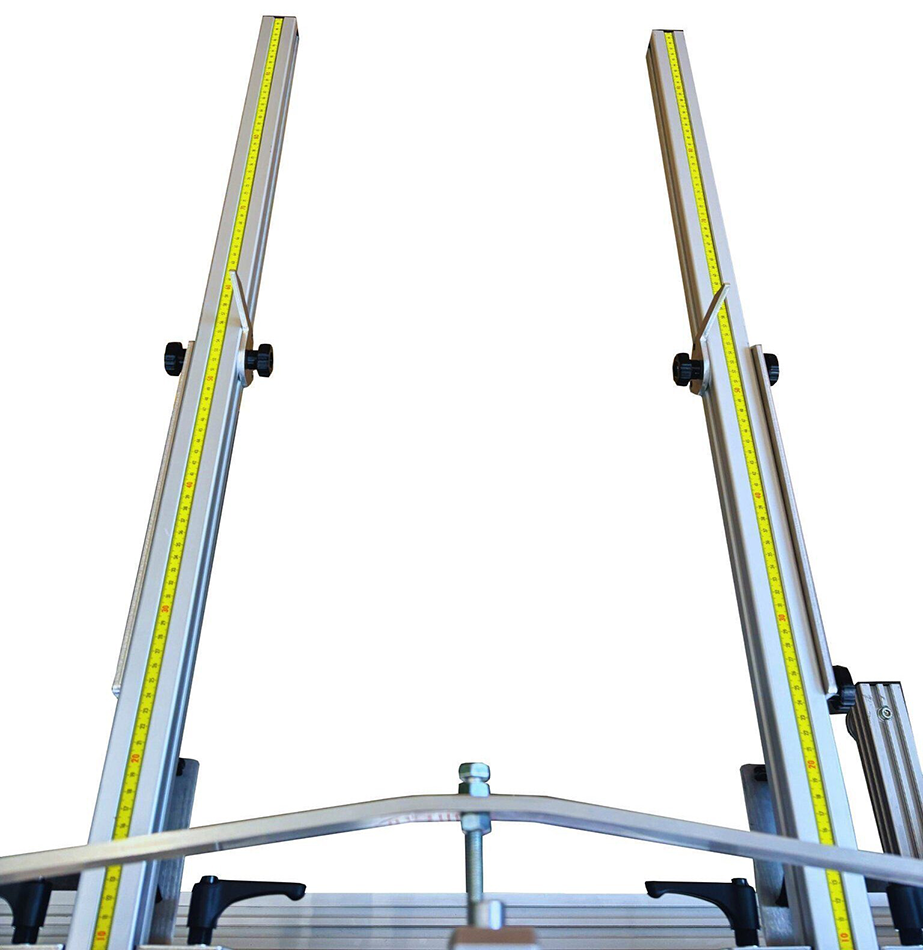

- angle fence
- metal box for safe storage of parts and tools
