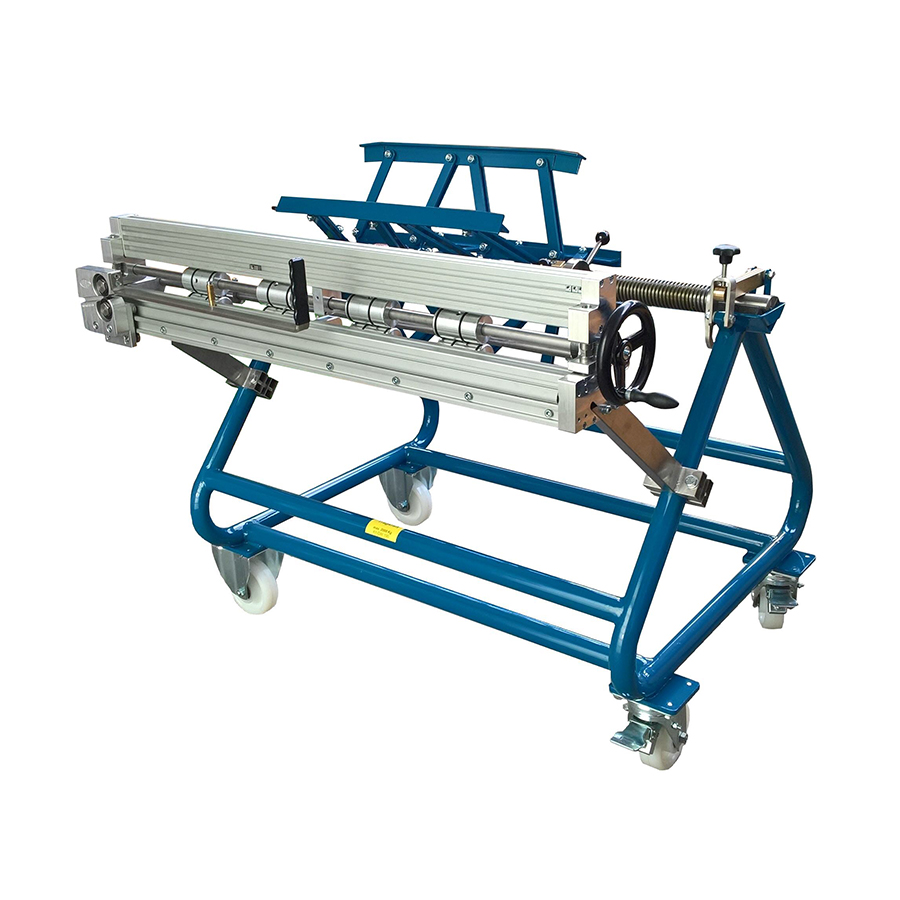

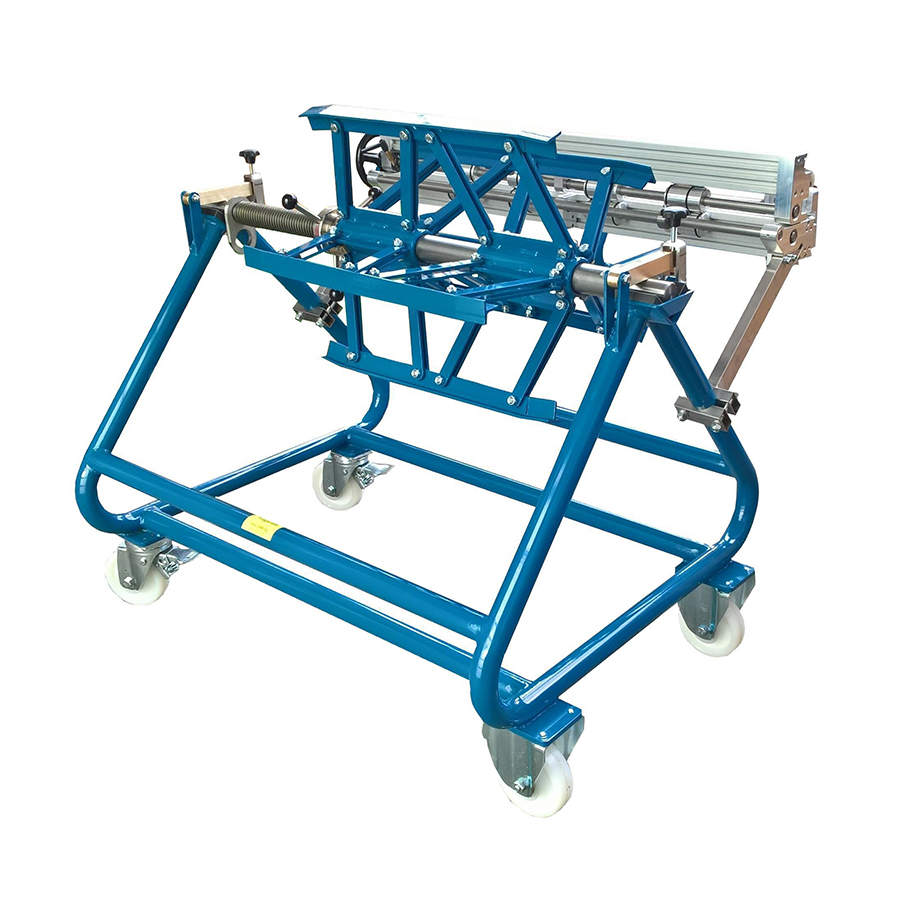

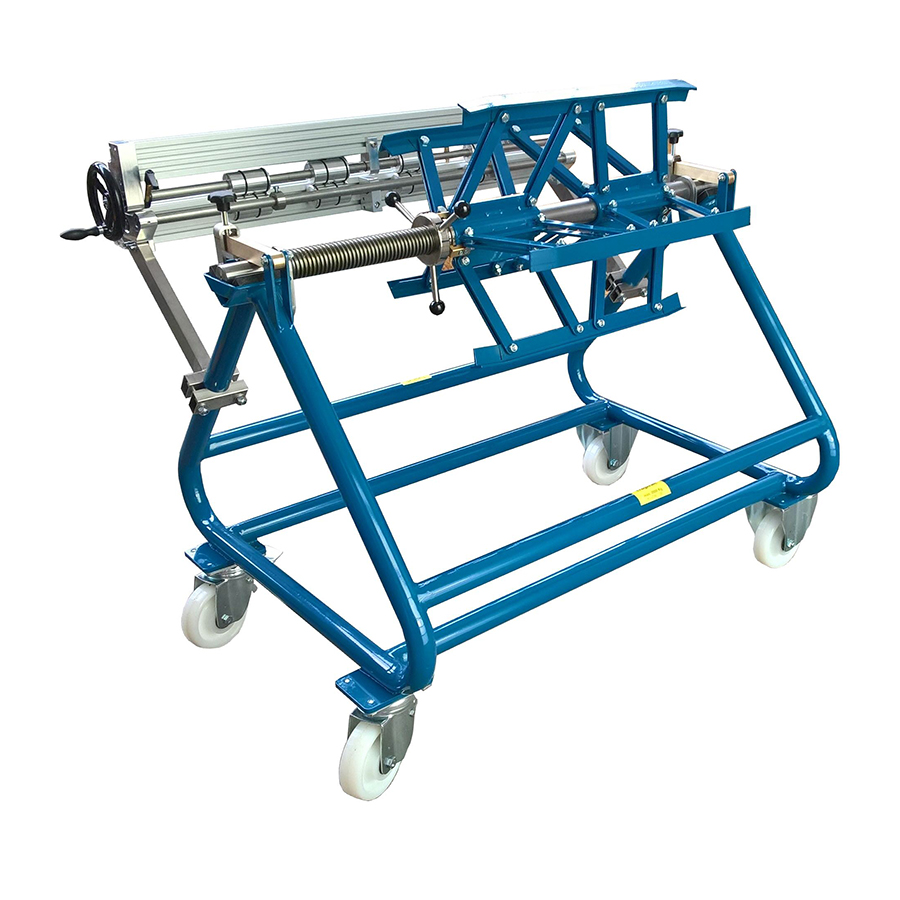

The Draco Mobile Decoiler K1-CW/AQ including the Decoiling and Cross Cut Attachment. Mobile decoiler K1-CW with core, two steering and two parking castors. The core has five adjustable arms, avoiding marks, dents or scratch marks, when the coil is clamped or de-coiled.
Available in three sizes:
K1-CW/100AQ
- Width coil car = 1000 mm
- Recommended coil width = up to 800 mm
- Carrying capacity up to max. 2000 kg
- Max. cutting capacity 1.0 mm steel, 0.5 mm stainless steel
- Max. transport (unroll) capacity AQ: 750 kg
- Max. coil outside diameter: 800 mm
K1-CW/125AQ
- Width coil car = 1250 mm
- Recommended coil width = up to 1000 mm
- Carrying capacity up to max. 1500 kg
- Max. cutting capacity 1.0 mm steel, 0.5 mm stainless steel
- Max. transport (unroll) capacity AQ: 750 kg
- Max. coil outside diameter: 800 mm
K1-CW/150AQ
- Width coil car = 1500 mm
- Recommended coil width = up to 1250 mm
- Carrying capacity up to max. 1500 kg
- Max. cutting capacity 1.0 mm steel, 0.5 mm stainless steel
- Max. transport (unroll) capacity AQ: 750 kg
- Max. coil outside diameter: 800 mm
