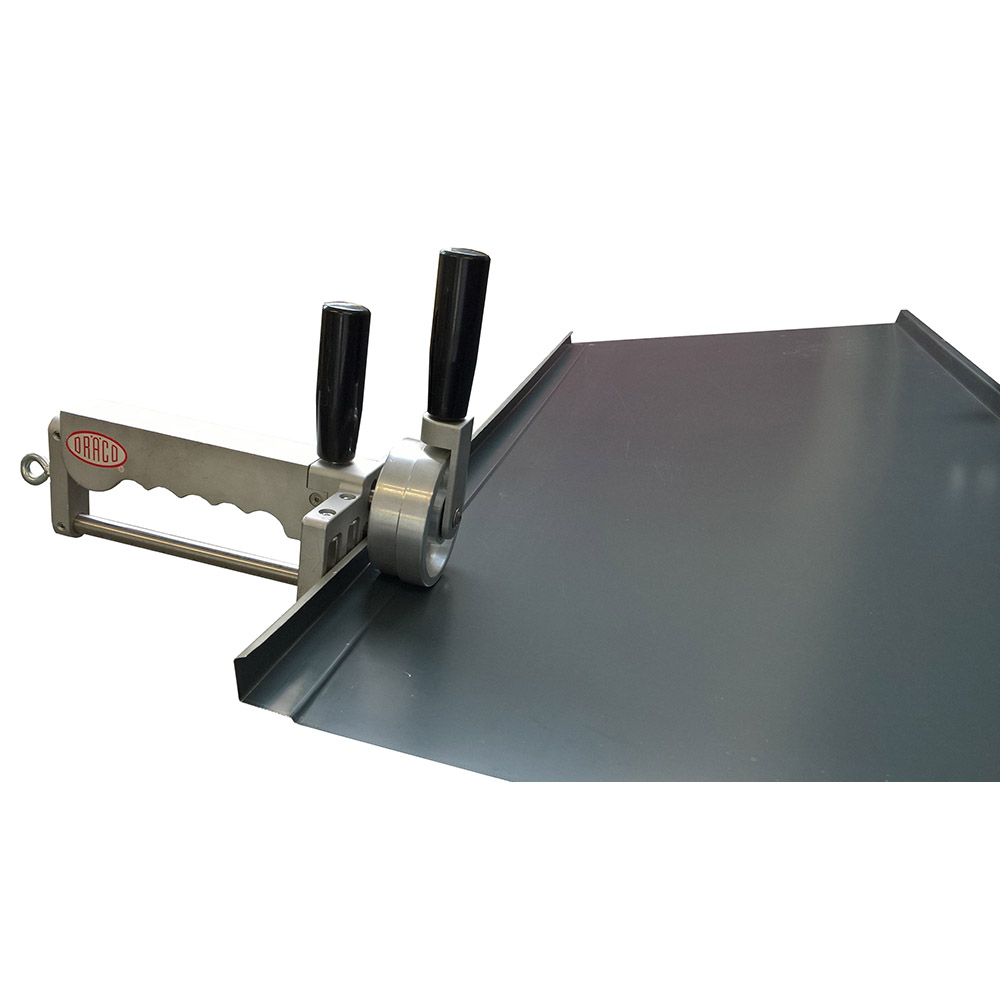

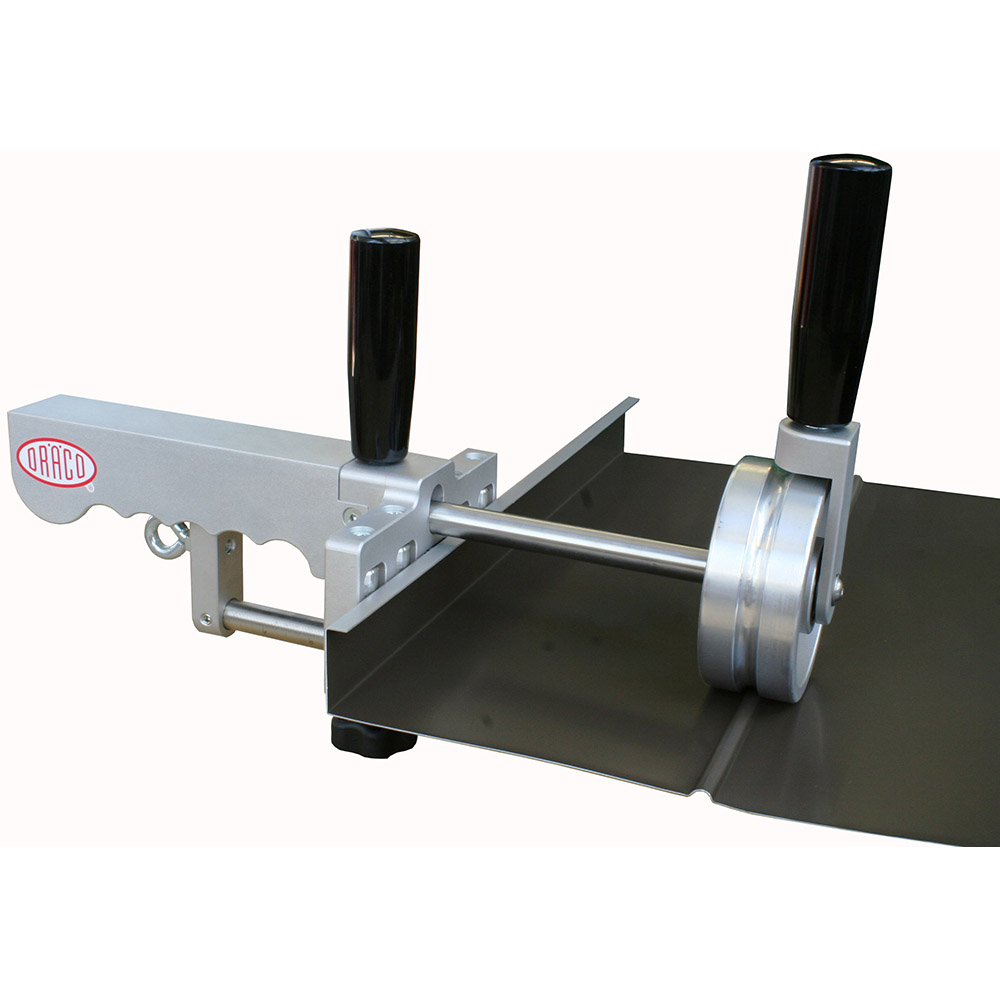

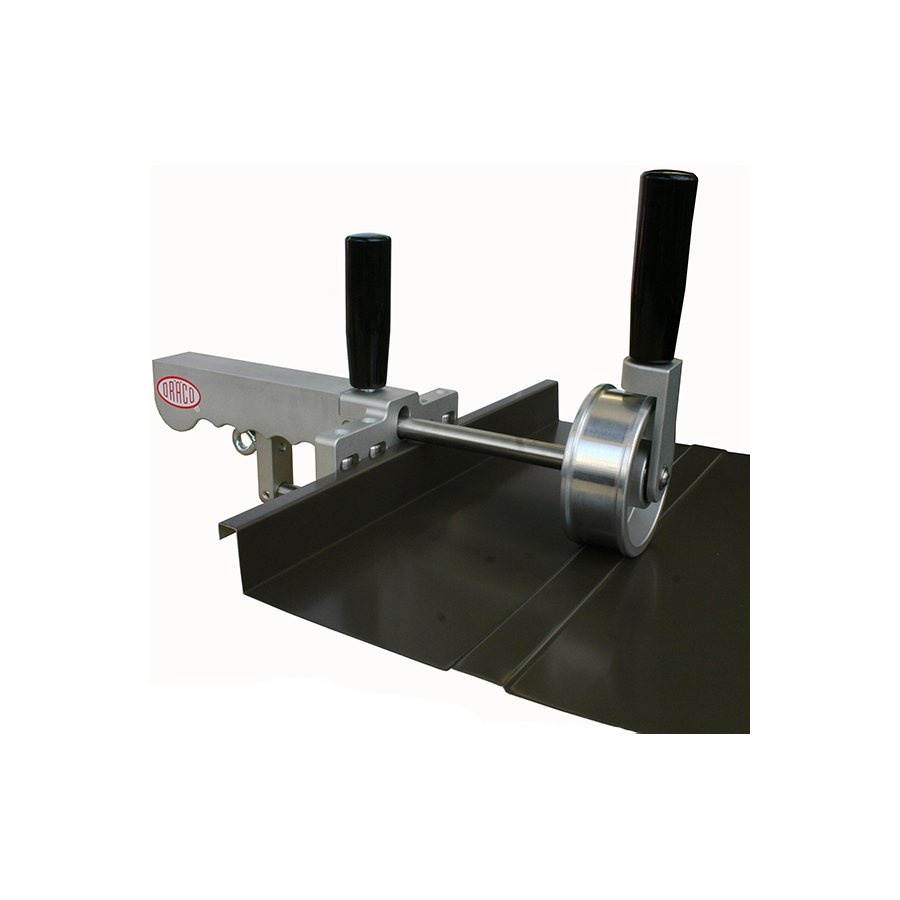

The Draco Rol-Beader Panel Beader PB is a mobile Beading Tool for sheets and panels. Perfect for standing seam panels up to 38 mm and many other work pieces, on site or in the workshop.

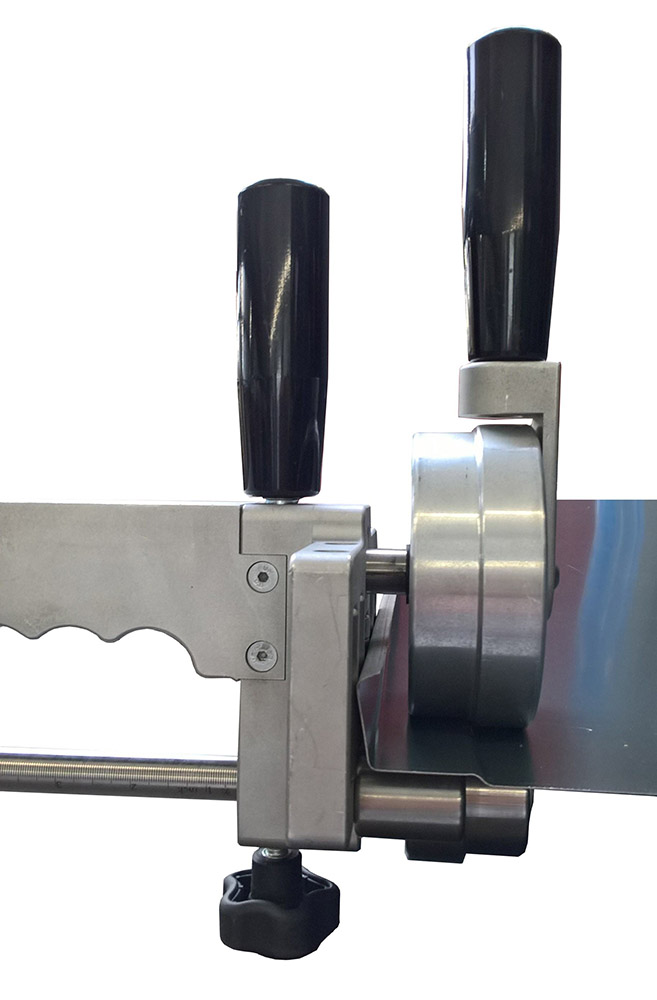

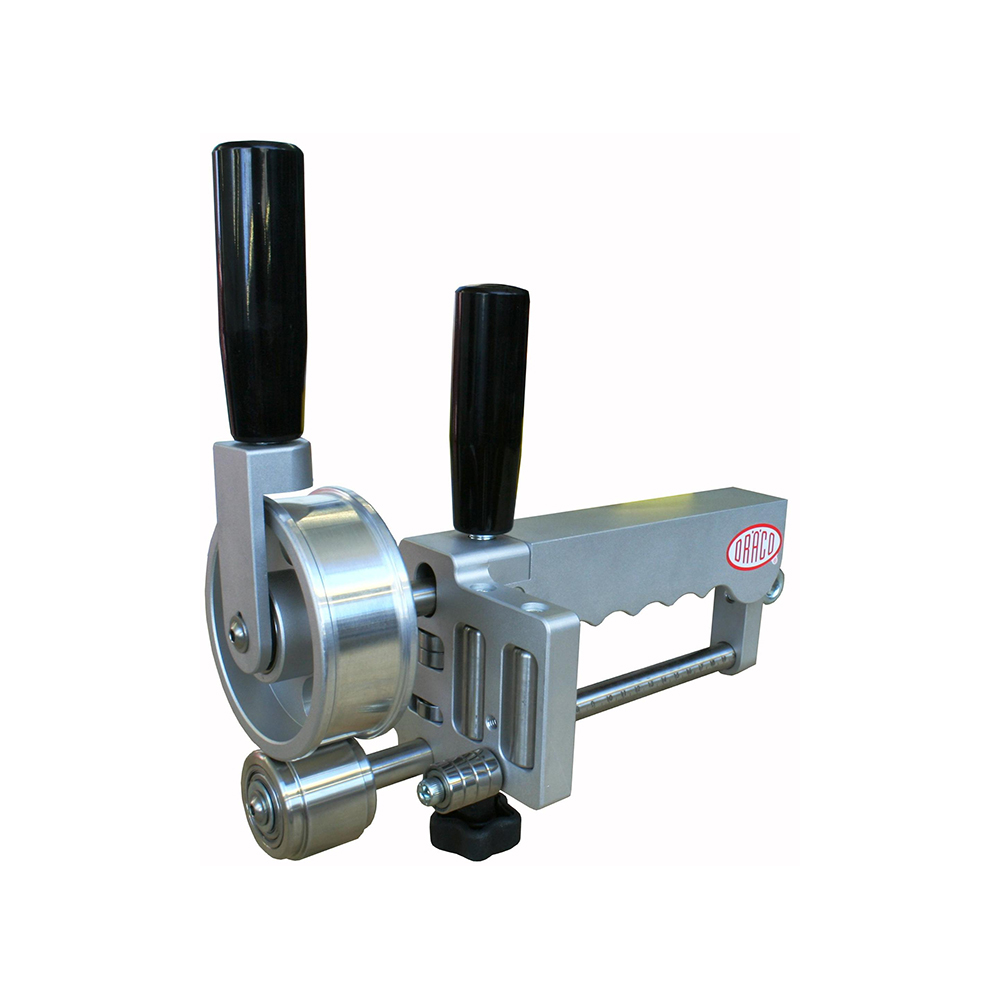

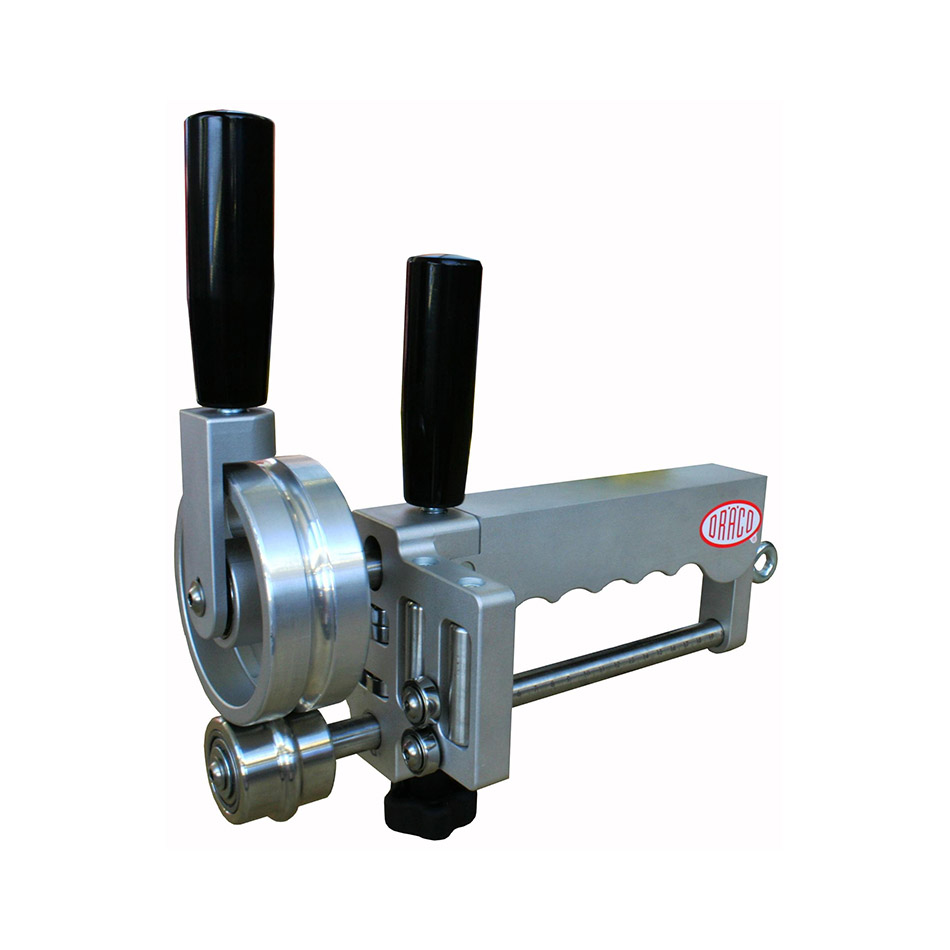

The Panel Beader PB 200 Plus is a light, portable device with a manual drive. Generates flat beads in sheet metal, coulters and folded or pre-profiled material. The manual feed of the top roller enables sensitive processing of the workpieces and the processing of complex shapes. The workpiece is not only guided through a stop plate, but also through vertically arranged hard guide rollers and ball bearings, which ensure the repeatability of recurring workpieces.
- Interchangeable form rollers
- Beading or offset depth up to approx. 3.5 mm
- Ideal for stiffening standing seam panels
- Stiffening/straightening dented panels (Rescue)
- Offset beadings (Clip Relief) (with model PB 200 V)
Capacity, ca:
Aluminium, Copper, Zinc: 1.0 mm (18ga.)
Steel: 0.8mm (20 ga.)
Stainless Steel: 0.5mm (23 ga.)
- Interchangeable form rollers
- Beading or offset depth up to approx. 3.5 mm
- Ideal for stiffening standing seam panels
- Stiffening/straightening dented panels (Rescue)
- Offset beadings (Clip Relief)
Versions:
- Flat PB 200F: Beading Dimensions: rib – 20mm width, max depth 4mm
- Round PB 200R: Beading Dimensions: rib – 6mm width, max depth 3.5mm
- Offset PB 200V: Beading Dimensions: clip relief – from 30mm, max depth 4mm
