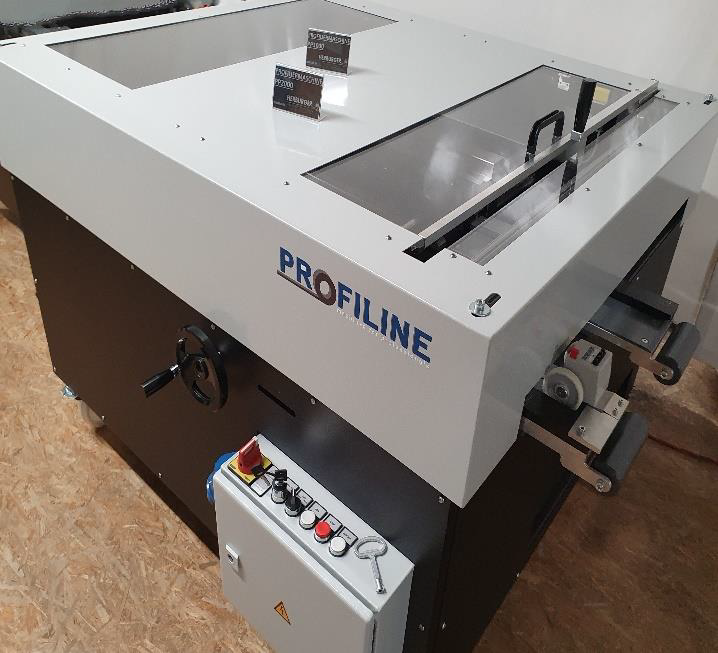

Herburger Profiling Machine – Profil Profi PP1000

Herburger profiling machine “Profil Profi PP1000” is the classic compact roll forming machine with cross-cutting device.

Problem-free profiling of:

• Shortfall
• Overlap
• Conical shares (from 50mm centre distance)

For all commercially available roofing qualities:

• Galvanized / galvanized coated: up to 0.7mm
• Aluminium, copper, zinc: up to 0.8mm
• Stainless steel ROOF-INOX / Uginox: up to 0.6mm

Specs:

• Dimensions in mm: L 1200 / W 1300 / H 1100
• Weight: approx. 480kg
• Profile sizes: 25mm or 32mm for single and double rebate
• Sheet width: Infinitely variable adjustment via Quickstep system for a sheet width of 280 – 820mm
• Sheet thickness: up to max. 0.8mm

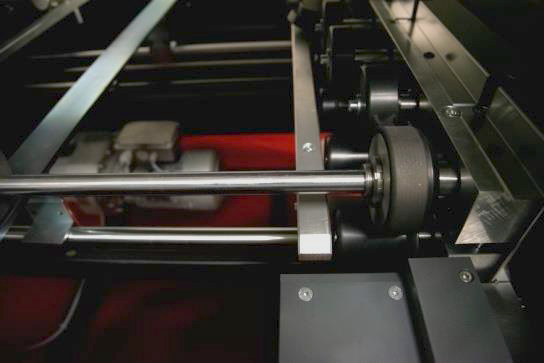

• Roller set: latest technology, hardened and with drive elements in the rollers (rubber inserts)

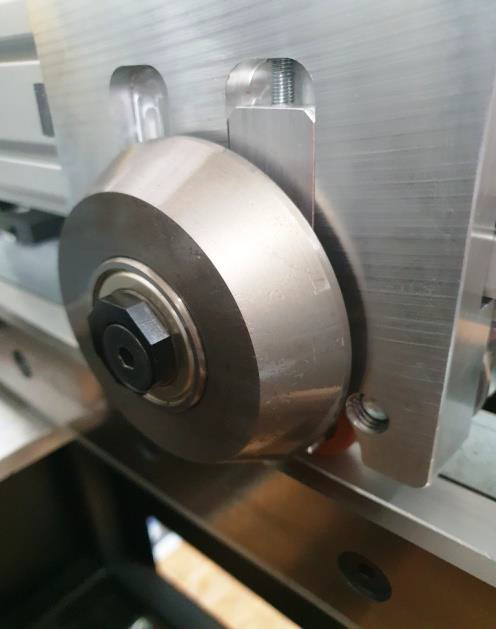

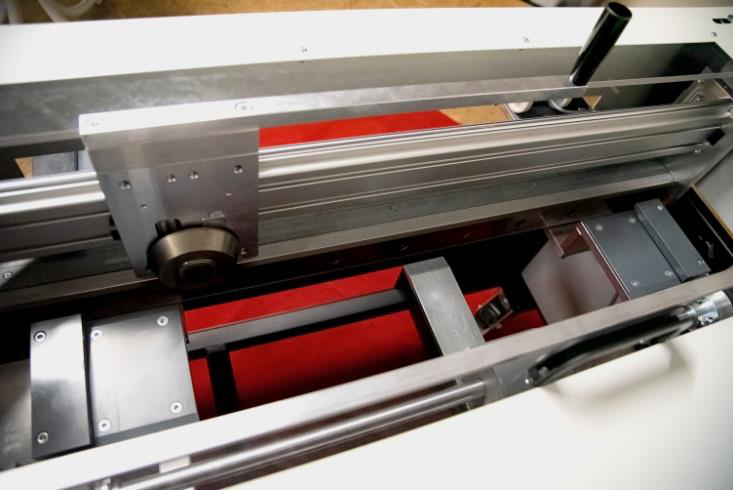

• Cutting device: Cross-cutting device via guide carriage
• Colour: RAL9005 deep black and RAL7035 light grey
• Connection: 1.5 KW/220V/16 A

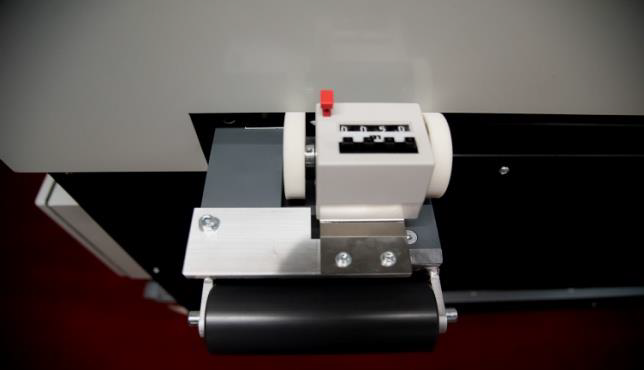

• Length measurement: Digital via measuring wheel

Accessories (optional):

• Speed regulation via potentionmeter from 0 – 15 m/min
• Round bending – profile for round bending (convex and concave)
• Roller set module for clip relief
• Bead roller set for stiffening beads for large widths or think sheets
• Conversion kit for 1 mm thick sheet metal
• Stainless steel castor set
