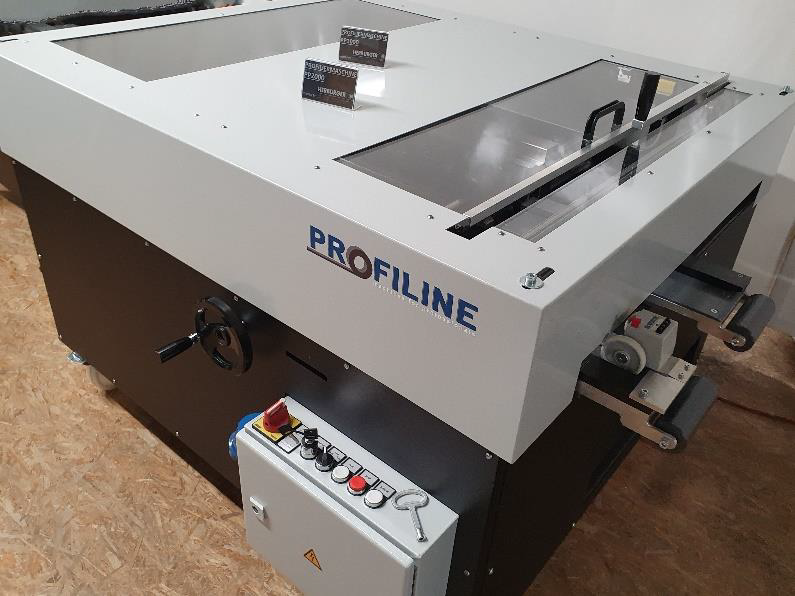

Herburger 1″/25mm Profiling Machine – Profil Profi PP2000

Herburger profiling machine “Profil Profi PP2000” is the business model roll forming machine with automatically switchable feed rollers and slitting unit.

Creates profiles for single or double lock 25mm/1″ high standing seams only!

Now exclusively available with stainless steel rolls

For all commercially available roofing qualities:

• Galvanized / galvanized coated: up to 0.7mm
• Aluminium, copper, zinc: up to 0.8mm
• Stainless steel ROOF-INOX / Uginox: up to 0.6mm

Specs:

• Dimensions in mm: L 1600 / W 1400 / H 1100
• Weight: approx. 500 kg
• Profile sizes: 25mm
• Sheet width: Infinitely variable adjustment via trapezoidal threaded spindle for a sheet width of 280 – 820mm
• Sheet thickness: up to max. 0.8mm

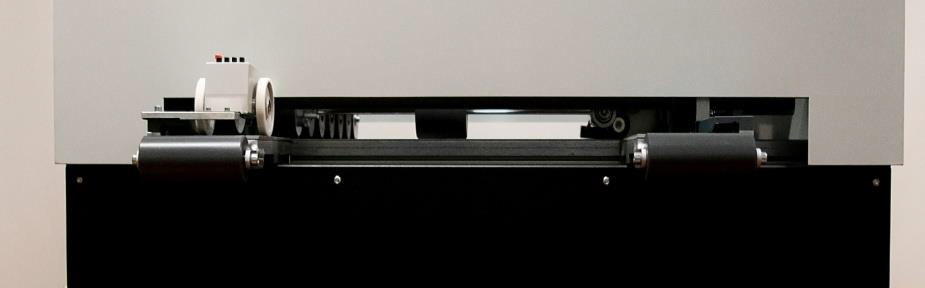

• Sheet feed: semi-automatic (via switchable clutch)

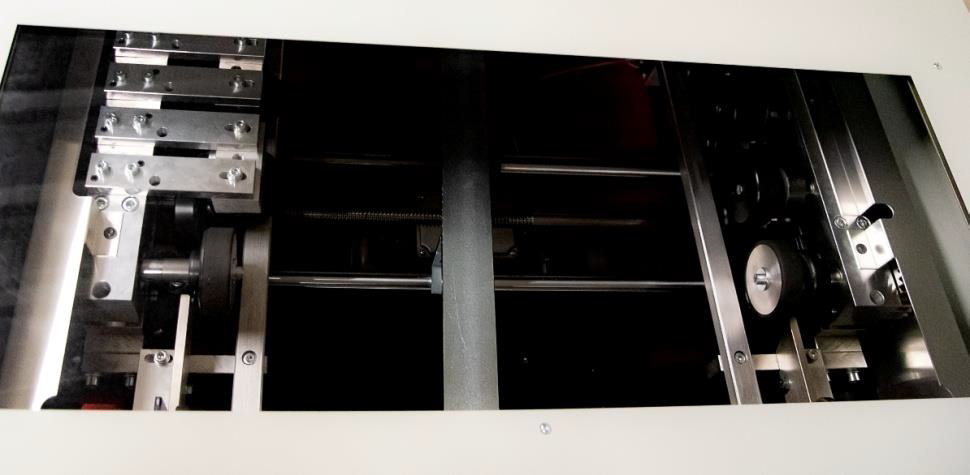

• Roller set: latest technology, hardened and with drive elements in the rollers (rubber inserts)

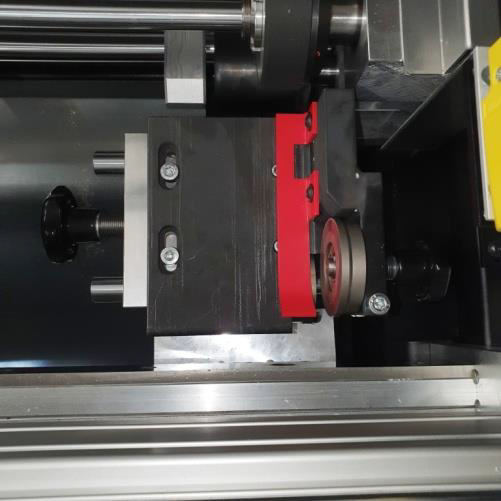

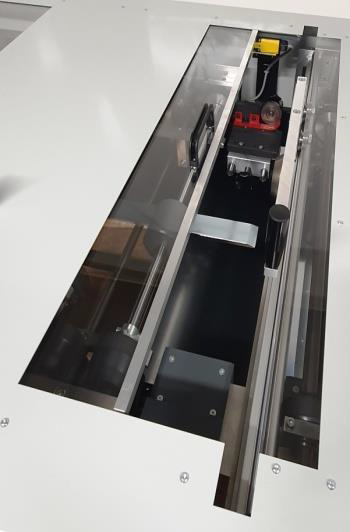

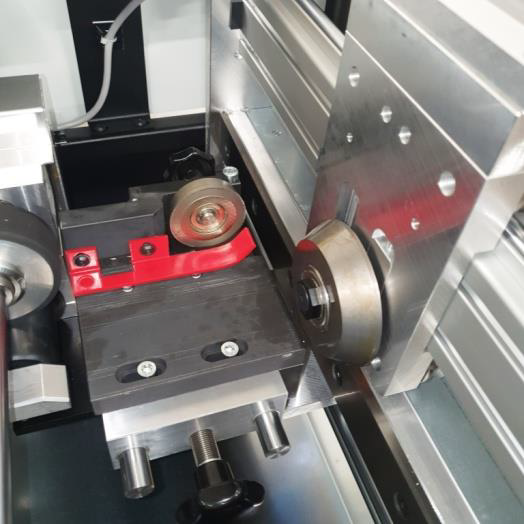

• Cutting device: Cross-cutting device via guide carriage and longitudinal cutting device with residual material ramp
• Colour: RAL9005 deep black and RAL7035 light grey
• Connections: 1.5 KW/220V/16A
• Length measurement: Digital via measuring wheel

Accessories (optional):

• Speed regulation via potentionmeter from 0-15m/min
• Round bending – Professional for round bending (convex and concave) after profiling
• Roller set module for clip relief
• Bead roller set for stiffening beads for large widths or thin sheets
• Conversion kit for 1mm thick sheet metal
• Stainless steel castor set
