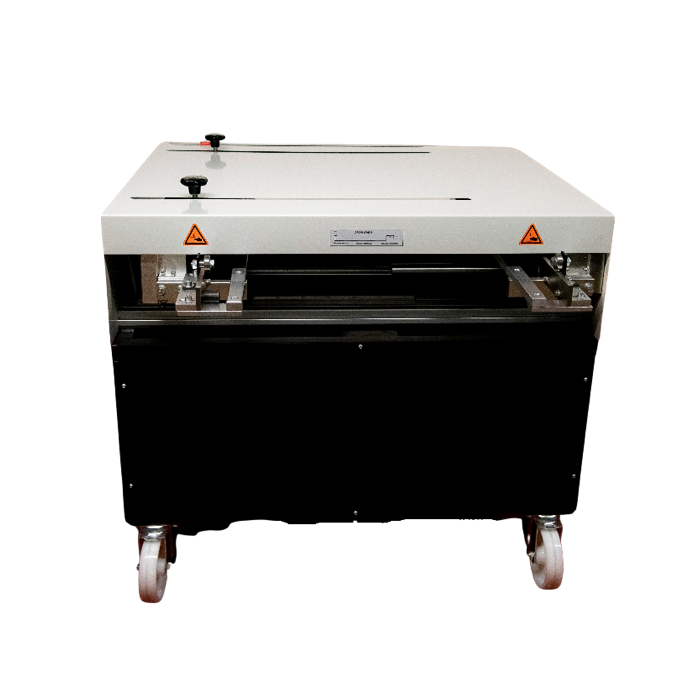

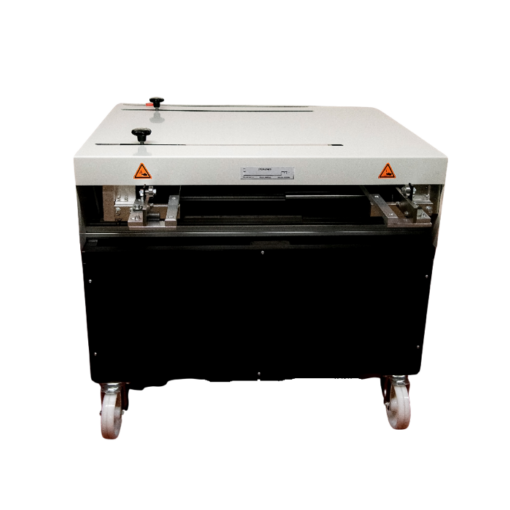

Herburger 1″/25mm Profiling Machine – Profil Profi PP800

Herburger profiling machine “Profil Profi PP800”, the beginner, easier classic profiler.

Creates profiles for single or double lock 25mm/1″ high standing seams only!

Now exclusively available with stainless steel rolls

Problem-free profiling of:

• Shortfall
• Overlap
• Conical shares (from 50 mm centre distance)

For all commercially available roofing qualities:

• Galvanized / galvanized coated: up to 0.7mm
• Aluminium, copper, zinc: up to 0.8mm
• Stainless steel ROOF-INOX / Uginox: up to 0.6mm

Specs:

• Dimensions in mm: L 1200 / W 1400 / H 1100
• Weight: approx. 290kg
• Profile sizes: 25mm

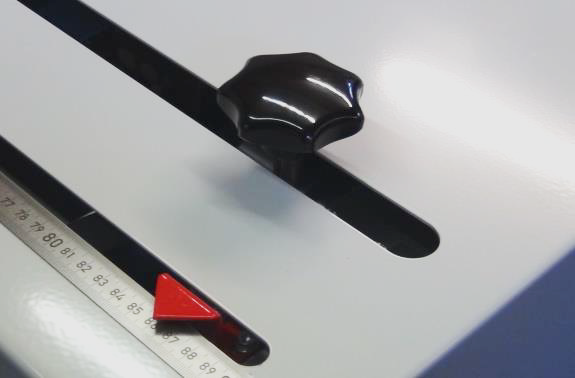

• Sheet width: Infinitely variable adjustment via Quickstep system for a sheet width of 280 – 840mm
• Sheet thickness: up to max. 0.8mm

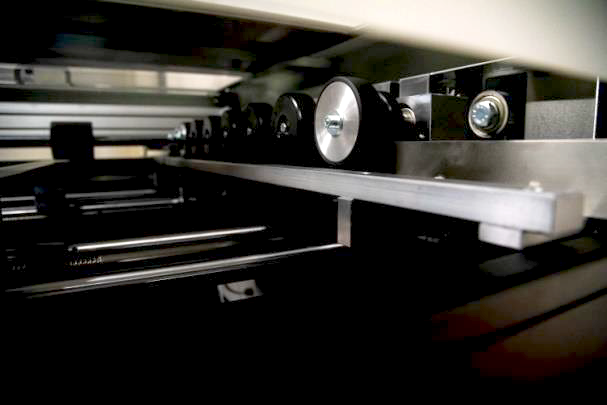

• Roller set: latest technology, hardened and with drive elements in the rollers (rubber inserts)
• Colour: RAL9005 deep black and RAL7035 light grey
• Connection: 220V/16 A

Accessories (optional):

• Extended outlet for better stabilization of the sheet metal shares
• Conversion kit for 1 mm thick sheet metal
• Cutting device – Hand shears (HS)

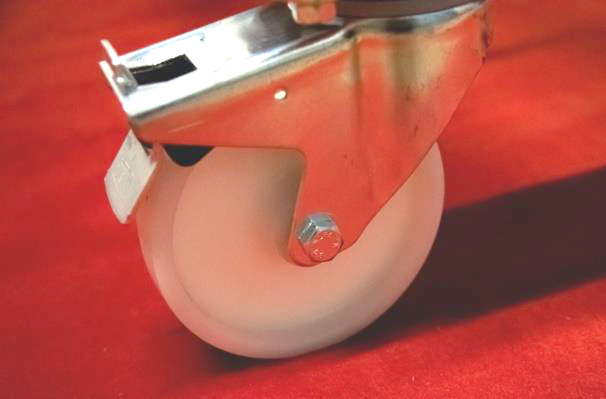

• Stainless steel castor set

Request a quote!

View PDF
